Acer Iconia B1-710 Screen Replacement

Geschrieben von: Ryan Weber
  • Kommentare: 0
Acer Iconia B1-710 Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

If the screen on your Acer Iconia model B1-710 tablet is not working or is damaged, use this guide to help you replace the screen. If the screen is shattered, please use caution when first handling the device as glass shards may be present. Before you begin, make sure the device is not connected to any charging ports and is powered off.

  1. JQIyUriyVqHsV5PO
    JQIyUriyVqHsV5PO
    siKeZLgDqUrZQQYr
    xC4NOiNQLBgLaNYI

    • Open the back cover by prying the casing off with an opening tool.

    • Be careful to not pull pieces apart aggressively. There is a wire that could break.

  2. ShVIWqleyNa2GMtb
    ShVIWqleyNa2GMtb
    pyDhZ54MWsct1CFA
    1KBuyM5uUJEhcZgG

    • Unplug the battery from the motherboard.

  3. ME5FDbwRMDqxTu45

    • Remove the battery.

    • The battery is lightly glued in, so there may be some difficulty getting it out.

  4. mhGc3QxipF3aZGcQ
    mhGc3QxipF3aZGcQ
    VDZfWusMfwHeOFAD

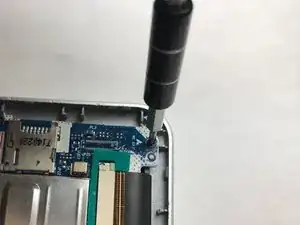

    • Unscrew all five 3 mm #000 Phillips screws.

  5. VDSNWdKTFPAk6CGQ
    VDSNWdKTFPAk6CGQ
    5BKPynTYFgMbg5J2

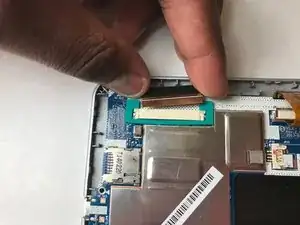

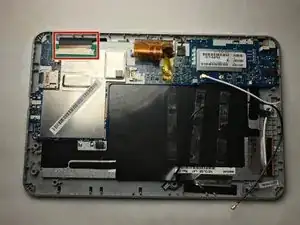

    • Unplug the LCD ribbon.

  6. K1wsmMtmDCjrM3bD
    K1wsmMtmDCjrM3bD
    HCD1lX1WXY2WQiiw

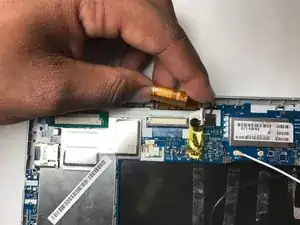

    • Unplug the orange ribbon.

  7. GWTxbcXKjBYdWuTR
    GWTxbcXKjBYdWuTR
    DPTJY3GPrCjgqKcg
    liW5AAYKaJnUCvXo

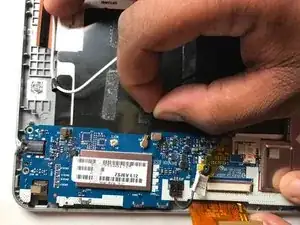

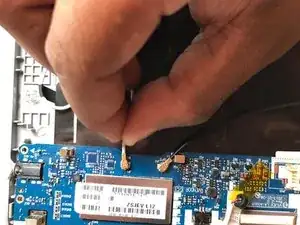

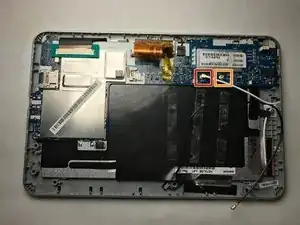

    • Unplug the white wire from the motherboard.

    • Unplug the black wire from the motherboard.

  8. EBCYcs3Y4JNLEUpX

    • Pull the motherboard off of the tablet.

  9. 2RIA1kv4RpMpualJ

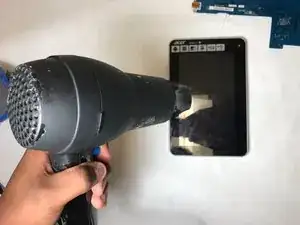

    • Use a blow dryer to melt the glue holding the LCD display in place.

    • Patience is key. It will take a few minutes to melt the glue.

  10. yhYfnBN4cSRLgRQJ
    yhYfnBN4cSRLgRQJ
    Wlqm3VMCUcZ41gdy
    Tcqn6eVNCqlEO5IE

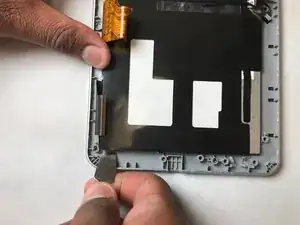

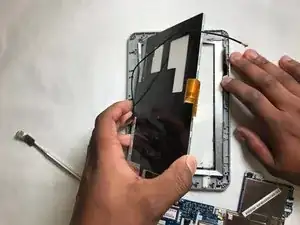

    • Peel the LCD display.

    • This piece is fragile and needs to be peeled with care.

    • Parts may be hot.

  11. S6QEHFFbi1ZeGuns

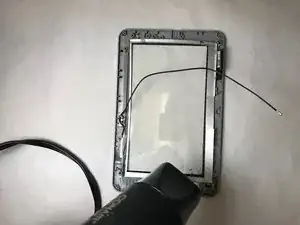

    • Use a blow dryer to melt the glue from the thin metal frame.

    • This piece is metal and will become hot during this process.

  12. H1j45gI3SBpp6Bho
    H1j45gI3SBpp6Bho
    UlRKDLhlt4cQMKqb

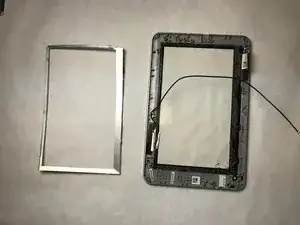

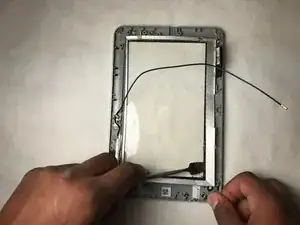

    • Peel off the thin metal frame.

    • Be careful not to bend the frame as it is very thin.

  13. e3iSfF3JiHKlaFYM

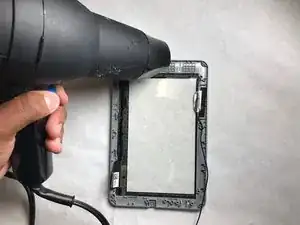

    • Use a blow dryer to melt the glue between the metal frame and the screen.

    • The frame will get hot.

  14. bWycYn1j6OVQJSCb
    bWycYn1j6OVQJSCb
    v3QLrsyZHQFXeato

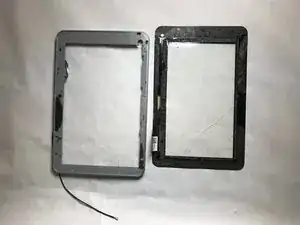

    • Peel the frame from the screen.

    • Be careful when peeling the screen or it may sustain further damage.

Abschluss

To reassemble your device, follow these instructions in reverse order.
