  1. AAgmDjLCwBJlR4RA
    AAgmDjLCwBJlR4RA
    VTDhNcqKwiplrFrM
    wYS4MEWEYXOJoQ4I
    • Insert a plastic opening tool into a gap near the charging port at the top of the device. Slide the tool in either direction along the device.

  2. fQIRhFnoMsbn6xZm
    fQIRhFnoMsbn6xZm
    NDT2EhRHrPfOyGsb
    pkRiDVHakVblyqF3
    • Slide the tool along until you have completely separated the rear cover.

    • If needed, place the first tool in the gap created to hold this gap open and use a second tool to pry the remaining portion of the rear cover off.

  3. dMMFwMMFBrVJ4hfs
    dMMFwMMFBrVJ4hfs
    MfFxZqaTqpHfCPgt
    • Once all the sides have been separated, you should be able to simply lift the cover off of the device.

  4. x46YMDRgWIcub4Ur
    x46YMDRgWIcub4Ur
    kASIFmVbshTHMEeL

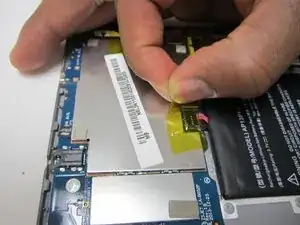

    • Peel back the plastic tape covering the battery connector.

  5. wajXJVsKGXVvPAlh

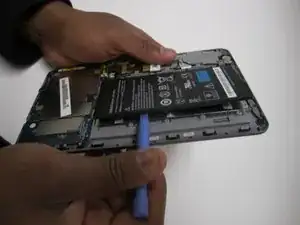

    • Use the plastic opening tool to lift the battery off of the back panel. The adhesive used is strong so apply force during removal.

  6. BYQx3dBaKoFMGJHg
    BYQx3dBaKoFMGJHg
    3pGHicCXrO3ITOKF
    UfFXmXlGgiMOPQ2s

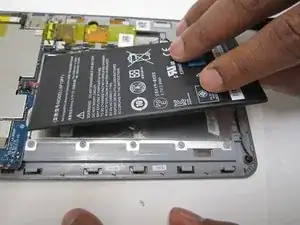

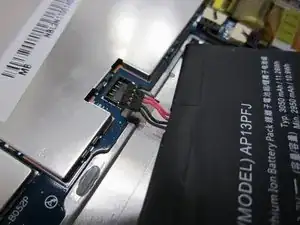

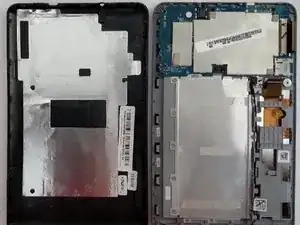

    • Lift the battery off of the panel gently. This will disconnect the battery connector from the motherboard.

  7. QVUKu23w3ELyLEuq
    QVUKu23w3ELyLEuq
    4VnEDQcovSBNZgym
    YXxWtVLUPLiCDdfN

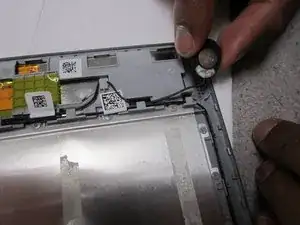

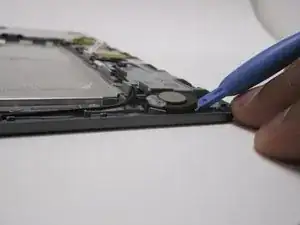

    • Pry the speaker away from the device using the plastic opening tool. This may require a little force due to the adhesive that is on the device.(Battery is not shown in this picture for image

    • Tug gently on microphone to remove from slot.

  8. Nae3VF1dyRNanHVD
    Nae3VF1dyRNanHVD
    wXWKpg3SuIGuPCGM

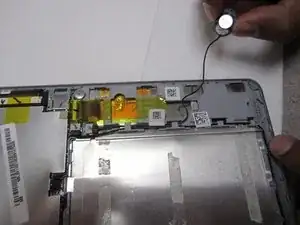

    • Unwind the wire from the running channel.

    • To remove microphone, follow same steps.

  9. Cy4eadSkHEMV5SIY
    Cy4eadSkHEMV5SIY
    eBG3xxmFNXDirNPy

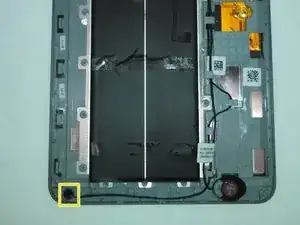

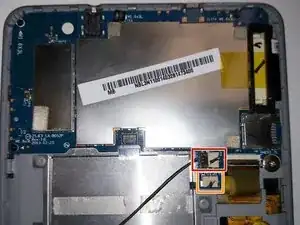

    • Unplug connector from motherboard.

    • Follow same procedure to remove microphone.

    • Unplug the microphone in a similar fashion as with the speaker.

  10. LDIAqehIngnrU6K2
    LDIAqehIngnrU6K2
    5CIZBragCVHNawYp
    FPbKmpg14hTfhurX

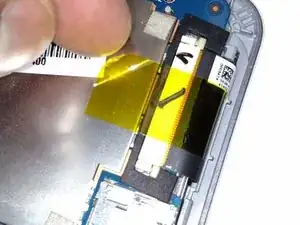

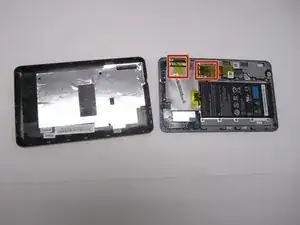

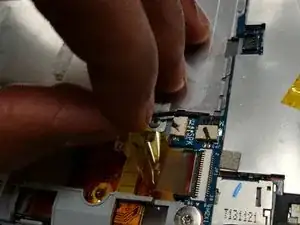

    • Remove the yellow tape covering both ribbons in the two photos shown.

  11. rLlTA6dtXkMfNFuv
    rLlTA6dtXkMfNFuv
    mGEuCdlFhpTLCc55

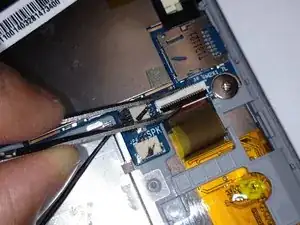

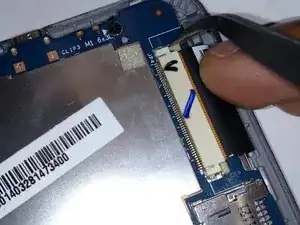

    • Use tweezers to lift the small black locking tab off of the orange ribbon

    • Remove the orange ribbon from the lock using tweezers

  12. wCNISKUVlSxsbRlS
    wCNISKUVlSxsbRlS
    KSMCGPVguYtFvFLE
    eb4OTmXJL3jEQvXs

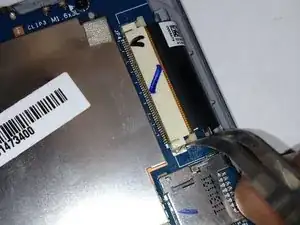

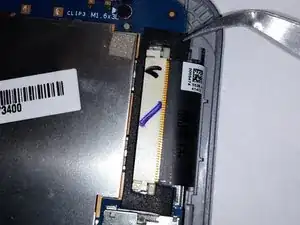

    • Use tweezers to remove rubber black wrap surrounding lock.

    • Use the tweezers to pull plastic tabs on each side of the black ribbon

  13. TnYDQwwJfQKGxD2l
    TnYDQwwJfQKGxD2l
    AknJ4CKpTBZUxqWY

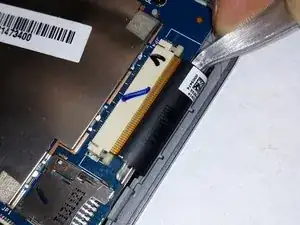

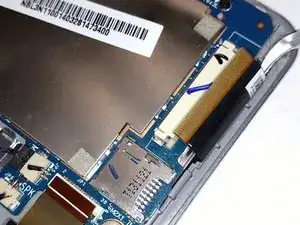

    • Use tweezers to gently remove black ribbon from locking mechanism.

  14. 2cikQbOnDJeFyAVq
    2cikQbOnDJeFyAVq
    ebuWStLaXCWM2ZL1
    rJfPWkrTkGrHTNtm

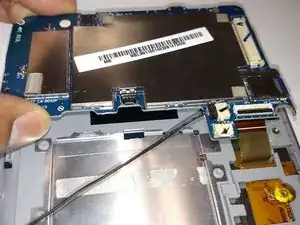

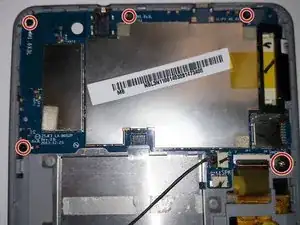

    • Remove the 5 screws shown in the photograph

    • Lift the motherboard from the front panel of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
