Einleitung

If one or both of your cameras are faulty, they can be removed through the use of a plastic opening tool and a Phillips #00 screwdriver.

  1. RPCkY1hRwVPiGEBF
    RPCkY1hRwVPiGEBF
    3QQvCopCU2g4f5VG
    • Make sure the device is powered off.

    • Pry open media port cover at the top of the tablet.

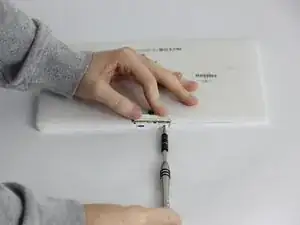

    • Use the Phillips 00 screwdriver to remove the 1 mm screw.

  2. hdDWnBdEAWNGDS33
    hdDWnBdEAWNGDS33
    MJM2LciDnkPoOQ11
    XIjob5jOyBKABclI

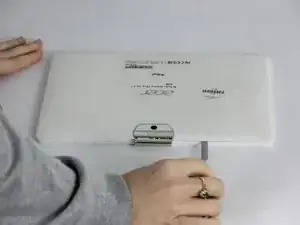

    • Using the metal spudger, carefully pry open the back cover.

  3. KFVFURhdfI4oXHdG
    KFVFURhdfI4oXHdG
    SAP6VTlNW4AesFHf
    IikGKxLNShovGpML

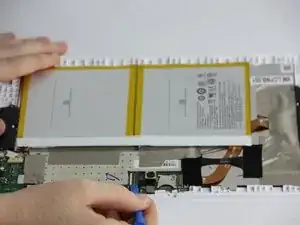

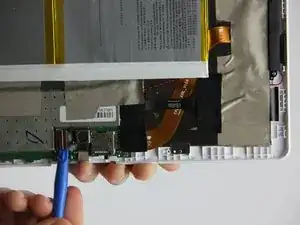

    • Using the plastic opening tool gently place the tip of it under the connection and pry up. It will pop out.

  4. EcKNhAkWTFm2ALl3
    EcKNhAkWTFm2ALl3
    WKw5ITAy2s25DENv

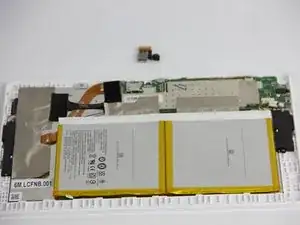

    • Use the plastic opening tool to pry up the rear facing camera. Once removed the front facing camera will come out as well.

Abschluss

To reassemble your device, follow these instructions in reverse order.
