Acer Iconia One 7 Speaker Replacement

Geschrieben von: Michael
  • Kommentare: 0
Acer Iconia One 7 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

The speaker is an essential part of the Acer Iconia One 7 enabling it to give auditory notifications and playback to the users. The speaker appears sturdy but it is in fact a delicate part requiring careful attention to detail and a light touch during replacement.

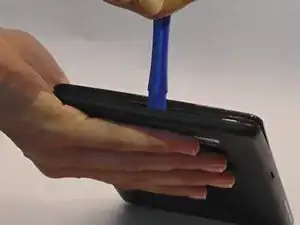

  1. GXIbVCxIAaBGqKQ2

    • Begin at any side of the tablet.

    • With a plastic opening tool, begin taking apart the back cover from the tablet by working along the edges.

    • Prying the lid open can be difficult; use caution in order to safely remove.

    • Turn off device before this step.

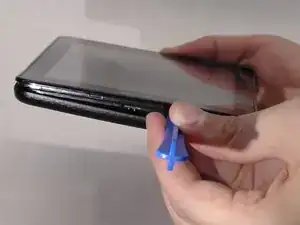

  2. PWmTcBrUPYjVJxAE

    • Using a plastic opening tool, separate the back cover from the main device.

    • Open each side continuously to ensure all sides have been separated.

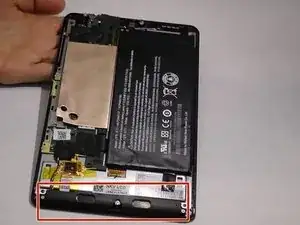

  3. RrUMAtUZLFsV6Av1

    • Turn the tablet over to locate the speaker.

    • Besides the parts that are mentioned in the instruction, try not to agitate other fragile components inside the device.

    • The speaker is on the bottom of the inside.

  4. YkdQaRKgBbHJjtR6
    YkdQaRKgBbHJjtR6

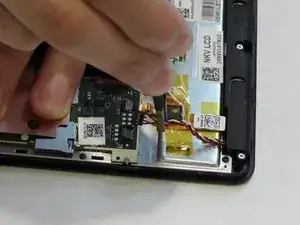

    f5TKLKaIMKxK2jaA

    • Peel back tape.

    • Using tweezers, detach connection from motherboard.

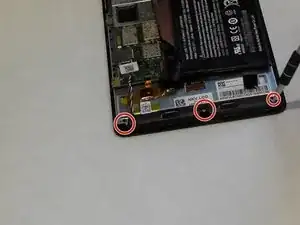

  5. yIbETuZvcIqAmHtf
    yIbETuZvcIqAmHtf

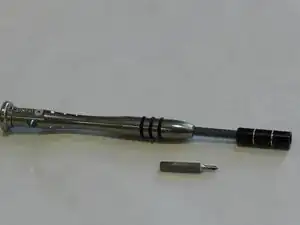

    sstG1i6DiFWTLhPW

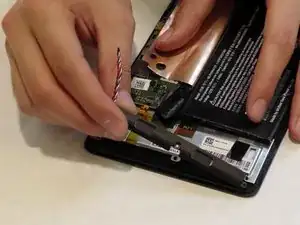

    G2KrCwKi53oKLlfS

    • Unscrew screws with a JIS screwdriver with a #00 screw bit.

    • Dislodge the speaker unit.

    • Take care not to displace any other bits in the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
