Acer Iconia One 8 Front Camera Replacement

Geschrieben von: Dustin Newland

Kommentare: 0

Acer Iconia One 8 Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

Follow this step-by-step guide to replace the front camera for the Acer Iconia One 8 (B1-850). Before beginning, be sure to power off your device and remove it from any external source of power.

Werkzeuge

Schritt 1

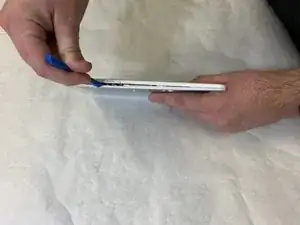

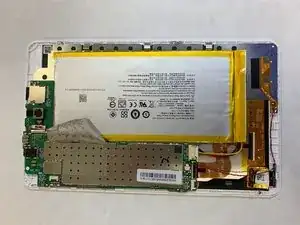

Begin by opening the back panel.

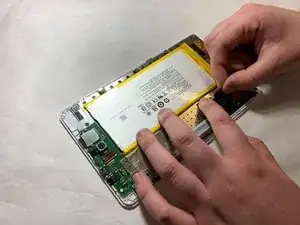

Wedge a plastic opening tool in between the front and back shell and gently separate.

Schritt 2

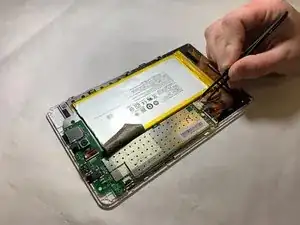

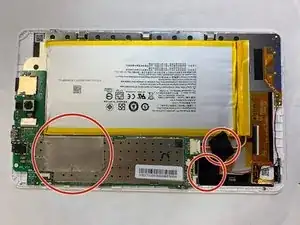

Peel back all pieces of tape indicated in picture.
There are three pieces of tape total (2 Black and 1 Silver).

Schritt 3

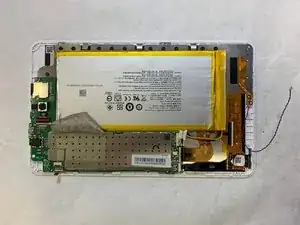

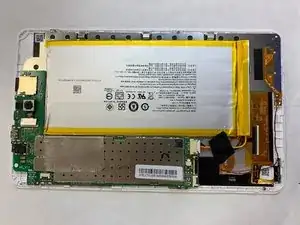

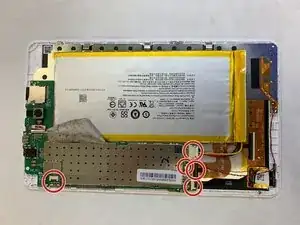

Disconnect all cables from the device.
There should be 5 total.

Schritt 4

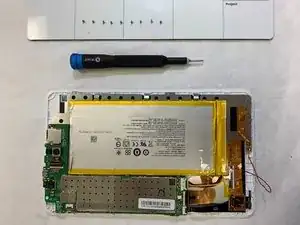

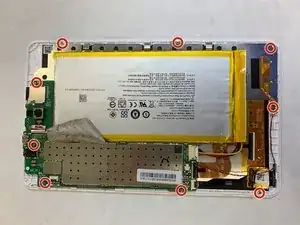

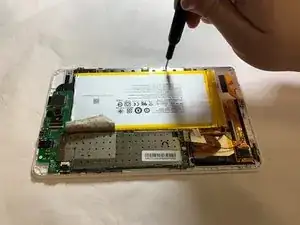

Remove the nine 3mm screws using the Phillips #000 screwdriver.

Schritt 5

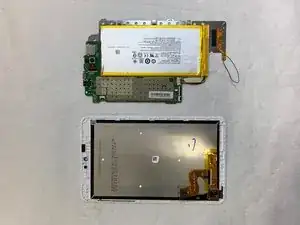

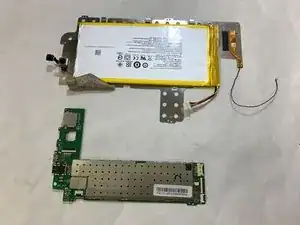

Remove and separate the back plating (top) from the glass screen (bottom).

Schritt 6

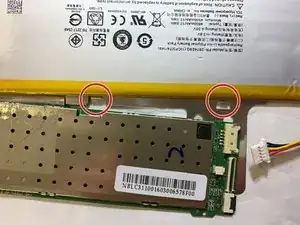

Disconnect the metal tabs connecting the battery to the motherboard frame.

Schritt 7

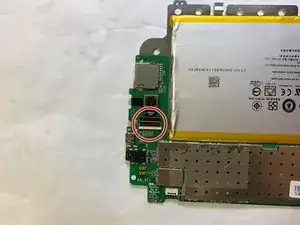

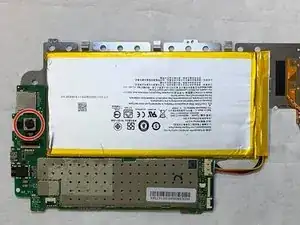

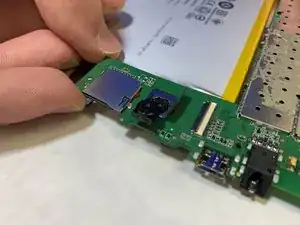

Disconnect the cable for the back camera.

Schritt 8

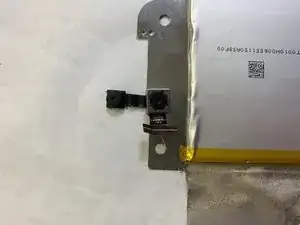

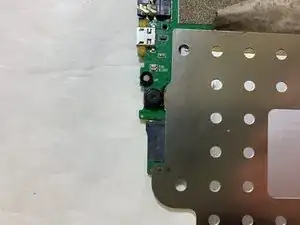

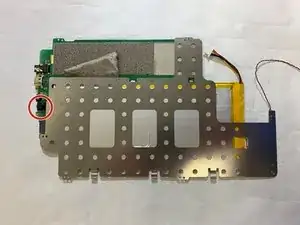

Flip the metal plating to reveal the front camera.

Schritt 9

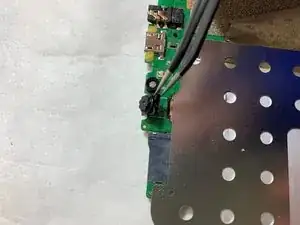

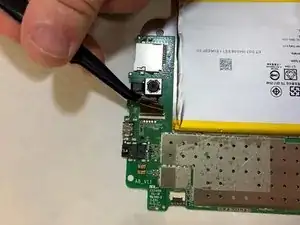

Use tweezers to carefully remove the front camera from the adhesive on the motherboard.

Schritt 10

Flip the device back over.
Remove the motherboard from the metallic frame by feeding the back camera and front camera cable through the port.

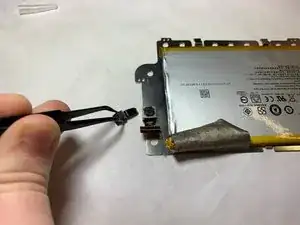

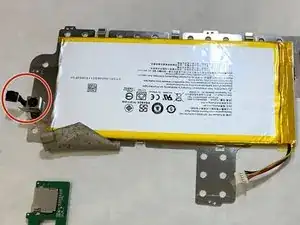

Remove the front camera from the device.
