Einleitung
The Docking port is used to connect accessories like keyboards with the device. Follow the steps in the guide to replace the existing docking port on the device.
Werkzeuge
-
-

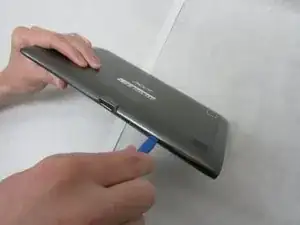

Use a plastic opening tool to carefully separate the back cover, starting at the volume buttons.
-

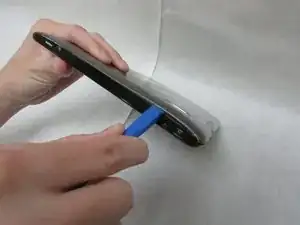

Continue separating the back cover along the short side closest to the camera and around the device.
-
-
-
When separated enough, a little more than halfway around the device, the back cover will be easy to take off.
-
-
-

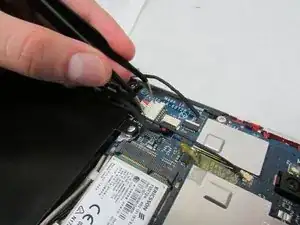

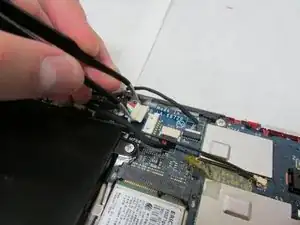

Use the angled tweezers to disconnect the white motherboard-battery connector in the middle of the side opposite the docking port.
-
-
-

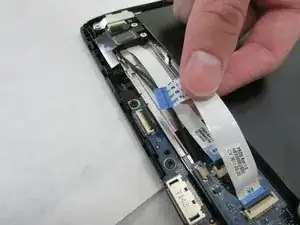

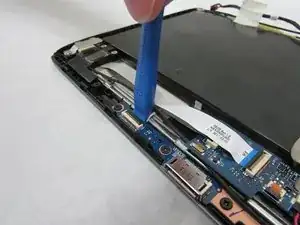

Use the plastic opening tool to flip up the locking mechanism for the ribbon cable on the docking port board that is flat, white, and folded.
-

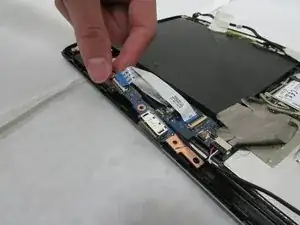

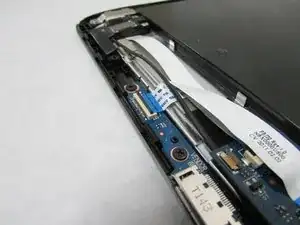

Detach the folded, white ribbon cable on the docking port board.
-
-
-

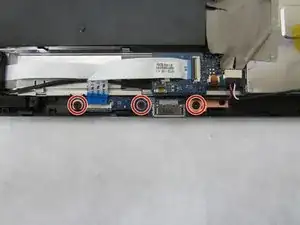

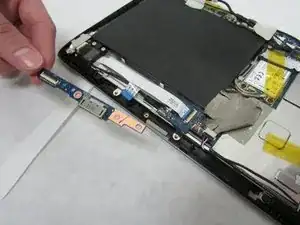

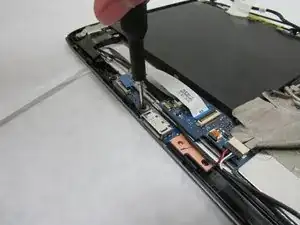

Use a Phillips #1 screwdriver to unscrew the three 3.0 mm Philips head screws holding the docking port in place.
-
To reassemble your device, follow these instructions in reverse order.
