Acer Iconia W3-810 Front Facing Camera

Geschrieben von: Griffin Hocker
  • Kommentare: 0
Acer Iconia W3-810 Front Facing Camera

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

1 - 2 Minuten

Einleitung

This guide is to be used for replacing the front-facing camera of an Acer Iconia W3-810. This is in case of physical damage or water damage to the camera.

  1. LVU4HUQERBKYRYx1

    • Place the tablet face down on a flat surface with the charger facing toward you.

  2. TsyRpC4DLgAlDHFR

    • Use a plastic opening tool to pry the back panel off of the device.

    • Be careful to not use the plastic opening tool near the charging dock or any media ports.

  3. Hs4rKLqLV2sFE3gw

    • Loosen the retaining flap connected to the front-facing camera by lifting it with a plastic opening tool.

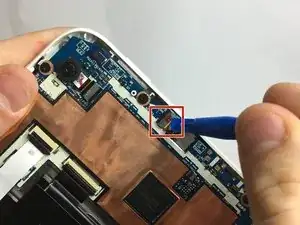

  4. ZZTkElK4U3vfY2xk

    • Remove the ribbon cord from its slot by pushing it out with a plastic opening tool.

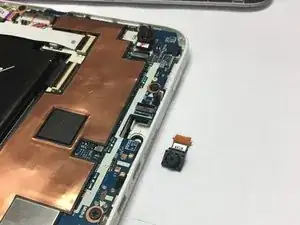

  5. RCA5esGl1M1N5QAZ

    • Simple replacement for another camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
