Acer Iconia W4-820 Battery Replacement

Geschrieben von: TechVid
  • Kommentare: 0
Acer Iconia W4-820 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

6 Minuten

Einleitung

  1. KY5ExcgelCa2bCO1

    • Flip the tablet over so that the screen is facing down

  2. jgYpk2xelCeH3gaf

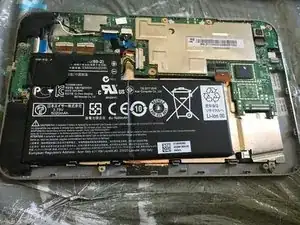

    • Use a plastic card or guitar pick to remove the back panel

  3. mjYoDol3VNarhREc
    mjYoDol3VNarhREc
    NbyZxyuhIbkgMKco

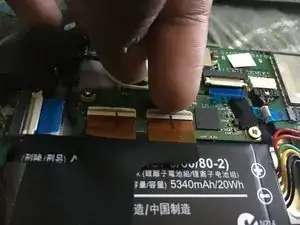

    • Use your finger, spudger, guitar pick, or card

  4. GXnMXmU2bDkJR5Id
    GXnMXmU2bDkJR5Id
    MXHUyi2TZBcWoSYU

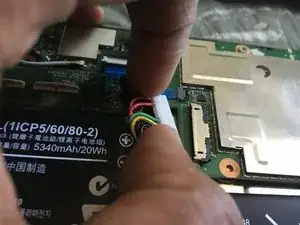

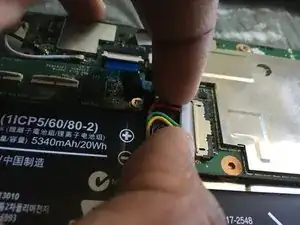

    • Use the same tools as before to remove the connector

  5. 5hZFHFdLg4QgiDCZ
    5hZFHFdLg4QgiDCZ
    BP1aFUFJfCbCEDpC

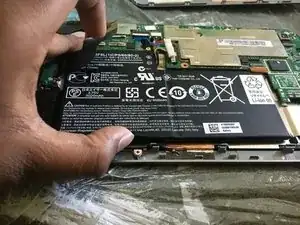

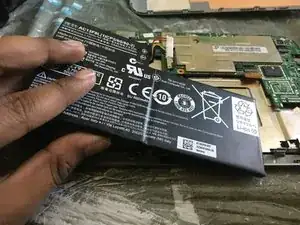

    • Gently remove battery as there is adhesive on the back

Abschluss

To reassemble your device, follow these instructions in reverse order.
