Acer Nitro 5 AN515-53-52FA Fan Replacement

Geschrieben von: Alfredo Prieto
  • Kommentare: 0
Acer Nitro 5 AN515-53-52FA Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 - 55 Minuten

Einleitung

Use this guide to replace the fan in the Acer Nitro 5 AN515-53-52FA, before using this guide open up the computer and use a can of air on the fan.

The fan is the cooling unit of the laptop, without the fans the laptop would not cool and overheat. A broken fan can make uncommon noises, and ruin the performance of the laptop. Dirt or dust could get lodged into the fan forcing them to stop and overheat the laptop.

The Old fans of the laptop can easily be recycled after.

  1. eTYbZskyOoBqYq1l

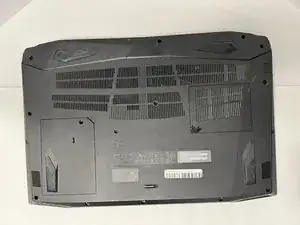

    • Before starting the replacement, make sure the laptop is turned off and unplugged.

    • Flip the laptop upside down so that the bottom is facing up

  2. XJXIkmOeplMUvhJG
    XJXIkmOeplMUvhJG
    ubJAP3HEkJ2RuSMm

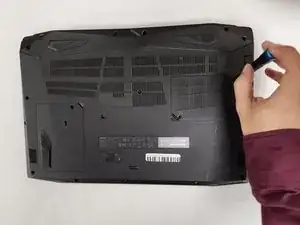

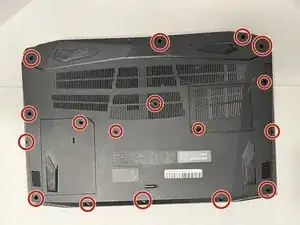

    • Use the Phillips #0 screwdriver to unscrew the sixteen 9 mm screws holding the back cover in place.

  3. VlZrpjWKQpkLxD3K
    VlZrpjWKQpkLxD3K
    PgcqKiG4JvXGKqvR

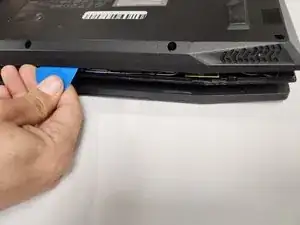

    • Use a plastic opening pick to work your way around the edges to remove the bottom case carefully.

    • Do not try to put too much force on the shell off as you may damage it.

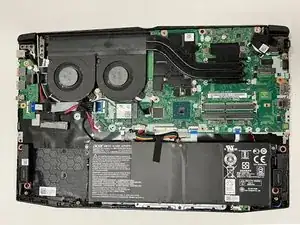

    • Removing the backshell of the laptop will reveal the inside of it.

    • The fan of the laptop is located on the top left of the laptop.

  4. maGYB1l6ydw2PZ3U
    maGYB1l6ydw2PZ3U
    pjPe24WSq12eVEgH

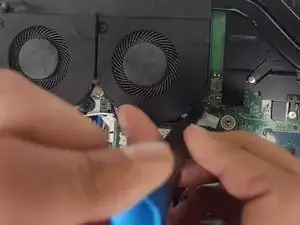

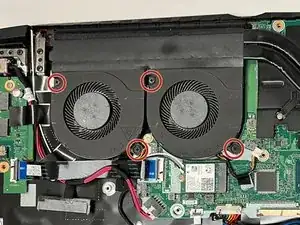

    • Use the Phillips #0 screwdriver to remove the four 9 mm screws securing the fans.

  5. Q3wdXhVYDVmQMunT
    Q3wdXhVYDVmQMunT
    SQpH6C4sg4akK4Q4
    2LXXNomiVODJP3HF

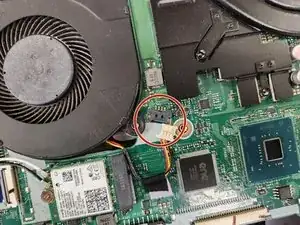

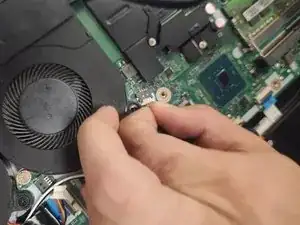

    • Unplug the connectors before taking the fan out.

  6. hNIGDbpMHEnb6oUi
    hNIGDbpMHEnb6oUi
    C2VZFONsgqrcyIVZ

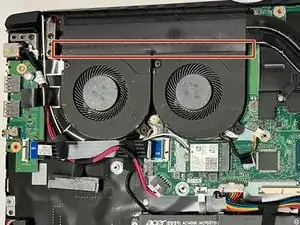

    • Gently remove the fans from the adhesive strip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
