Einleitung
Use this guide to replace the RAM card in the Acer Nitro 5 Acer Nitro 5 AN515-53-55G9. This laptop has two available RAM card slots but only comes with one card. This guide shows you only how to replace the standard RAM card.
Werkzeuge
-
-

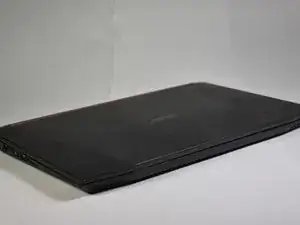

Flip the laptop upside down so the bottom is facing up.
-

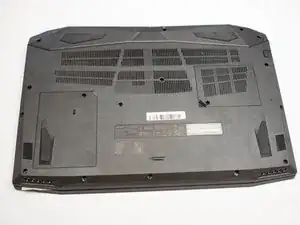

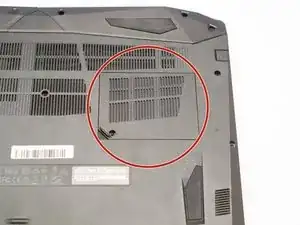

Identify the RAM tray on the bottom of the laptop.
-
-
-

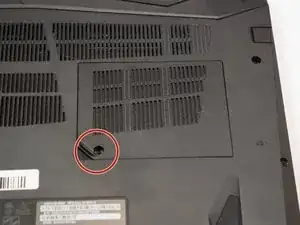

Use the Phillips #0 screwdriver to remove the 9mm screw in the bottom left corner of the RAM tray covering.
-
Remove the RAM tray cover by prying up with a spudger.
-
-
-

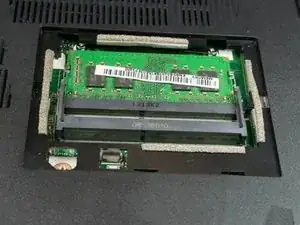

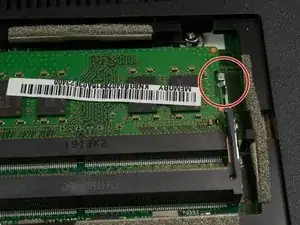

Locate the silver clips holding the RAM tray.
-

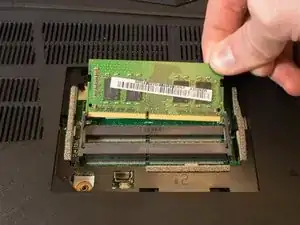

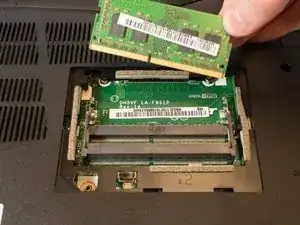

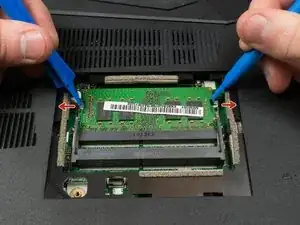

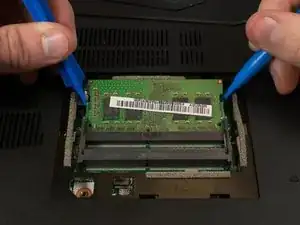

Push the silver pins holding the RAM tray down away from RAM. Slight pressure may be required. The RAM tray should pop up at an angle.
-
To reassemble your device, follow these instructions in reverse order.
7 Kommentare
NOTE: Just FYI, once you have added another ram module to this laptop, and you turn it on, the screen may stay blank for up to a minute while the BIOS registers the new memory. Don’t panic if your screen does not come on right away. Give the BIOS time to update the new memory.
When I updated the ram in my Acer Nitro 5, the screen did not come on right away, and I thought it was a non compatible ram module, but this was not the case, just had to be patient.
Can you take ram out of an aspire e15 and put in a nitro and have it work?
I have a nitro 5, but it does not have the ram thing on the bottom of it. does the change what it looks like inside?
william -
This guide refers to the 53-generation Nitro 5 (AN515-53) but I believe you are referring to the 54-generation (AN515-54). While they do not look exactly the same under the cover, they are very similar and the hardware is close to the same place and the RAM is installed using the same process.
ok thank you so much.so instead of the small cover I just take the bottom panel off.
william -
