Acer Nitro 5 AN515-53-55G9 Touchpad Replacement

Geschrieben von: Rheo Bruer
  • Kommentare: 3
Acer Nitro 5 AN515-53-55G9 Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the TouchPad in the Acer Nitro 5 Acer Nitro 5 AN515-53-55G9. This laptop has a track pad that can be replaced if damaged or broken.

  1. WUiSr2CjeCX2ZBEL
    WUiSr2CjeCX2ZBEL
    ja3RaKWdaUTSbD2U
    kAvO4MgtBy3eMviV

    • Make sure laptop is off and unplugged before beginning replacement.

    • Flip the laptop upside down so that the bottom is facing up.

    • Identify the RAM tray on the bottom of the laptop.

  2. 5RMoNfLpSVYDHCRV
    5RMoNfLpSVYDHCRV
    qkJrsRLvDtddaJle
    5irWLvpMnh1a46iE

    • Use the Phillips #0 screwdriver to remove the 9mm screw in the bottom left corner of the RAM tray covering.

    • Remove the RAM tray cover by prying up with a spudger.

  3. iatldYlgcXqKEYx2
    iatldYlgcXqKEYx2
    HOT5MWQOfXJCI3pF
    QhbTH3f1E4ULba6W

    • Identify the Hard Drive tray to the left side of the laptop.

    • Remove screw with a #0 Philips screwdriver.

    • Lift up the Slot covering using a spunger.

  4. CGIICOfEMJHqfgE4

    • Use the Phillips #0 screwdriver to remove the 9mm screws holding the back cover in place.

    • Remove the screws from the hard drive and remove it from the device.

  5. Mi1xOygrjqfh4yhZ
    Mi1xOygrjqfh4yhZ
    CRFoNjrrOVoiDQCf
    AdRCh5fXCogPbpMr

    • Be sure you removed the hard drive. when you open the back shell and hard drive is built in this may cause damage to cable and other components.

    • Carefully remove the back shell from the device working your way around all the edges.

    • Do not forcefully try to separate the shell as you may cause harm to the shell.

  6. dSWO3JklKQAZlHSs
    dSWO3JklKQAZlHSs
    eMDDJKsjbVhRfMmc

    • Removing the back shell of the computer and it will look like this.

    • The battery for the device is located at the bottom middle of the laptop at this orientation.

    One part you missed was to tell everyone that the HDD would still be attached to the back shell. I removed the shell and promptly ripped out my HDD cable. Now having to order a new cable…

    Mike Nitchie -

  7. ZsvtbppCyPMBIDSs
    ZsvtbppCyPMBIDSs
    FMPsT6ZnAYoISwri
    dTXYJGoHrLRfPxBv

    • Locate the connector of the battery to the motherboard.

    • Using your fingers, slide out the connector.

  8. jPWGGm3UFb2Kqksa

    • Remove battery from device.

  9. LviWsuYAZjUiwyld
    LviWsuYAZjUiwyld
    6ZGmXADuJI2vHijb

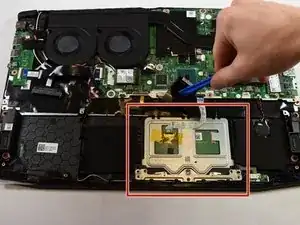

    • Locate the Touchpad in the lower middle of the device.

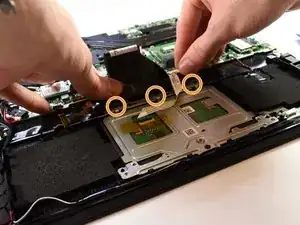

    • Locate and remove the 4mm screws that hold the Touchpad in place.

  10. xUlMcTePprIhEfLa
    xUlMcTePprIhEfLa
    EjxTjTtpDwEumbIt
    eGRQeOJlRLoDaiAA

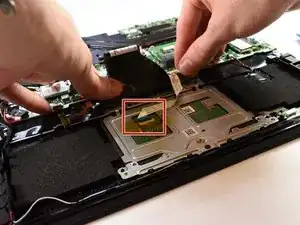

    • Locate the Touchpad's connector.

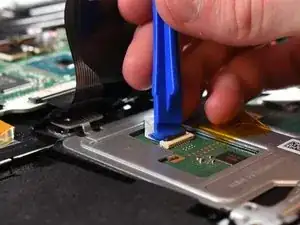

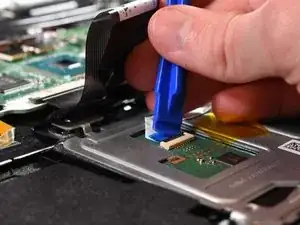

    • Use a plastic spudger to pry up the small plastic clip on the connector port.

    • Gently pull the cable out of the port.

  11. B5qugaPxSQaZomWq

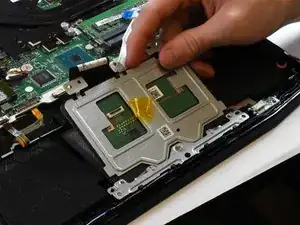

    • Lift up the Touchpad and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
