This guide will walk you through the process of replacing a dying or dead Wi-fi card in an Acer Nitro 5 AN515-53-55G9. If you have connectivity issues with your computer, they may be alleviated by installing a new Wi-fi card.
-
-

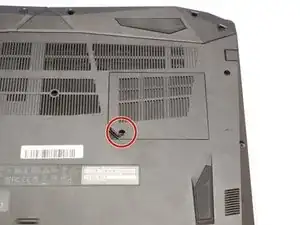

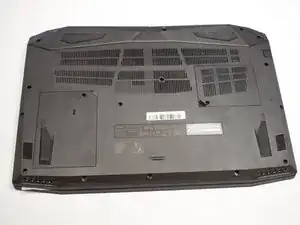

Use the Phillips #0 screwdriver to remove the 9mm screw in the bottom left corner of the RAM tray covering.
-

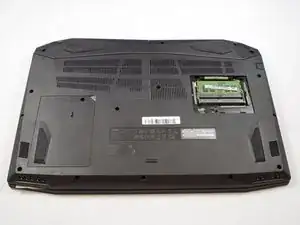

Remove the RAM tray cover by prying it up with a plastic opening tool.
-
-
-

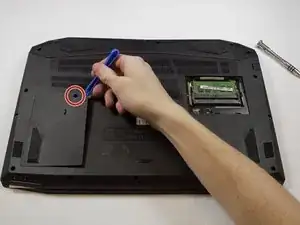

Remove the screw on the Hard Drive tray with a Phillips #0 screwdriver.
-
Lift up the tray covering using a plastic opening tool.
-
-
-

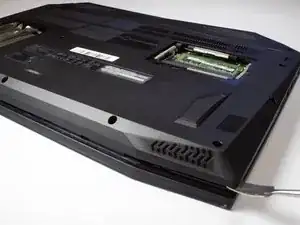

Use the Phillips #0 screwdriver to remove the fourteen 9mm screws holding the back cover in place.
-
Remove the hard drive (if applicable) from the slot prior to removing the back cover.
-
-
-

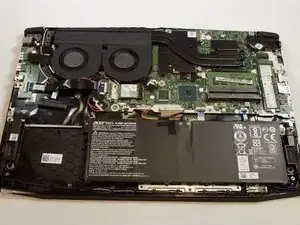

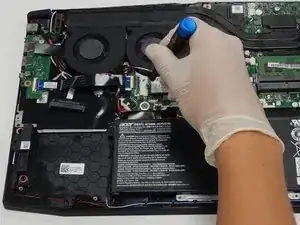

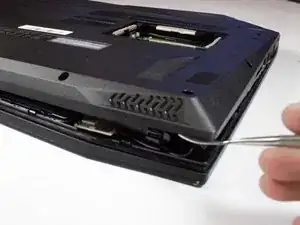

Carefully remove the back shell from the device by prying at the creases with a spudger around all the edges.
-
-
-

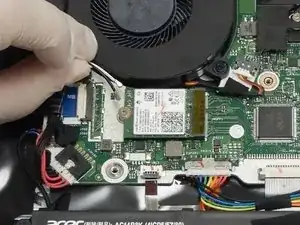

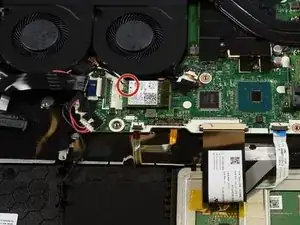

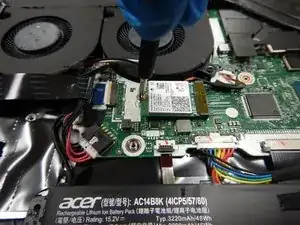

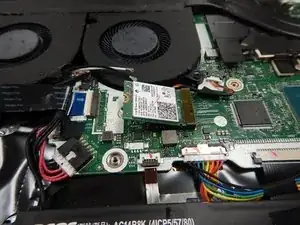

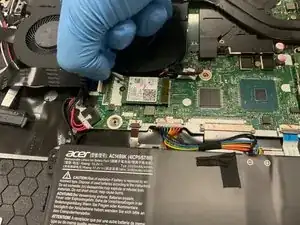

Using your fingers, disconnect the white and black cables connected to the left side of the Wi-fi card.
-
To reassemble your device, follow these instructions in reverse order.
