Acer Nitro 5 AN515-55-55M1 Motherboard Replacement

Geschrieben von: Samuel Rouillard
  • Kommentare: 1
Acer Nitro 5 AN515-55-55M1 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

  1. OPLxuan2OSjtkv1d

    • Make sure the device is off and unplugged from power.

    • Flip the device so the bottom is facing up.

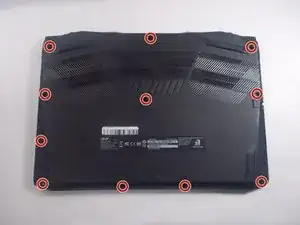

    • Remove 11 screws from the bottom case using a Phillips #1 screwdriver.

  2. nOBEhp6GnCIMpAfE
    nOBEhp6GnCIMpAfE
    wQlGQcyGOLlQwDna

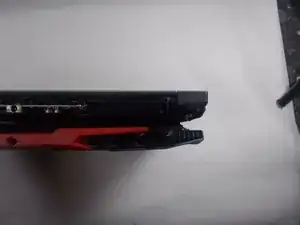

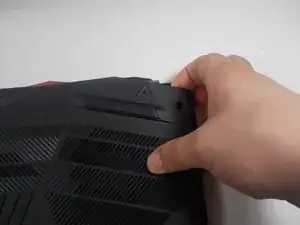

    • Lift the top left and right corners up and away from the device.

    • This may require some force and will make harsh clicking sounds. This is normal; it's the plastic tabs separating from each other.

    • Remove the panel from the laptop.

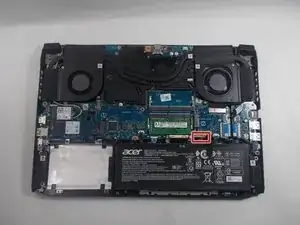

  3. el41NjlMKeYSelSu
    el41NjlMKeYSelSu
    5ecYwDXHCvpXEEeY
    m3eSk5yxpydNSQry

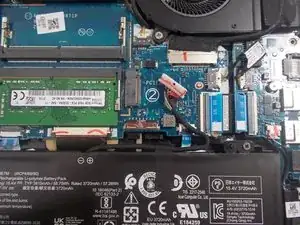

    • Use an opening tool to disconnect the battery from the motherboard.

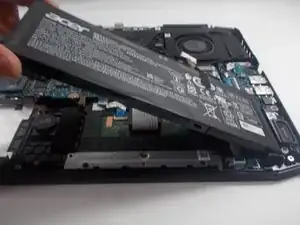

  4. sHnA2oWKleJ6HXPl
    sHnA2oWKleJ6HXPl
    6dxRV2EKwulXjLfA

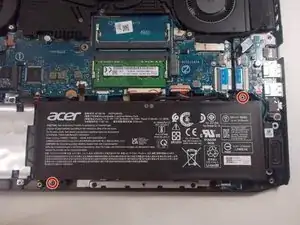

    • Remove the two screws from the battery with a Phillips #1 screwdriver.

    • Remove the battery by pulling up and out from the left side.

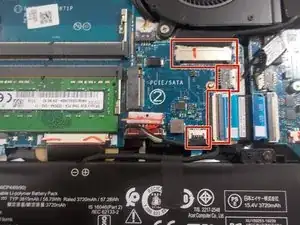

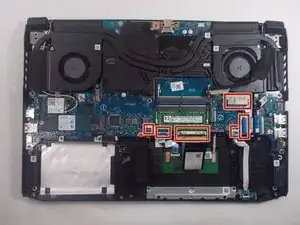

  5. fMrOw2yeDMUCdsL4
    fMrOw2yeDMUCdsL4
    6SDDdgxgvpWNvbGd
    Itg1dHyXR2sAYOHI

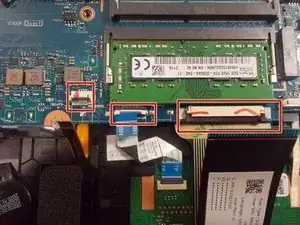

    • Disconnect the seven cables from the motherboard using an iFixit opening tool.

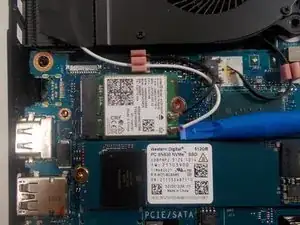

  6. EXxhUVcSU3fLR5rT
    EXxhUVcSU3fLR5rT
    VEYjRqEwNKxQeQD4
    RuRQLkYKTyXBDMw1

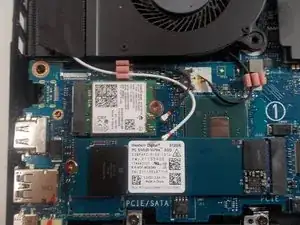

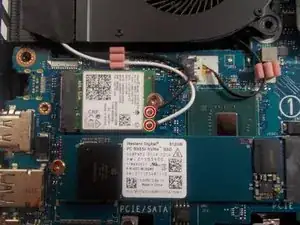

    • Use an iFixit opening tool to lift the two Wi-Fi antenna cables up and away from the Wi-Fi card.

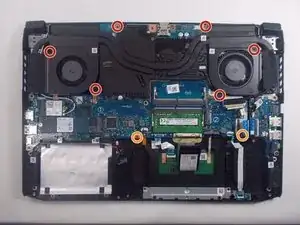

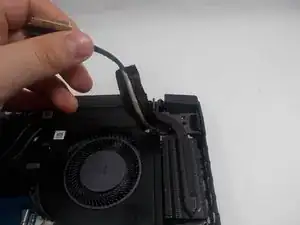

  7. lxdo5hVMdFEOXXb2
    lxdo5hVMdFEOXXb2
    ZC3pSuuJqivkJ5fB
    1Sbl2SsWXSItLnGv

    • Remove the six screws surrounding the fan using a Phillips #1 screwdriver.

    • Remove the two shorter screws from the motherboard using a Phillips #1 screwdriver.

    • Lift the taped wires off of the fans on the right and left sides.

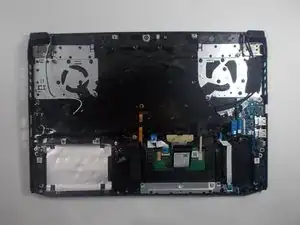

  8. BjWRCaxvVMLh1hIQ
    BjWRCaxvVMLh1hIQ
    RTpnCZt1UvavJZQb
    sxN1H3NktaqBtoZV

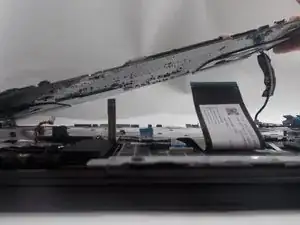

    • Lift up the right side of the motherboard.

    • The cables may need some guidance to leave the management holes on the motherboard.

    • Continue to lift at an angle until there is a give.

    • Remove the motherboard and fans from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
