Einleitung
This guide will teach you how to change the Wi-Fi card in the Acer Nitro 5 AN515-55-55M1. You may need to perform this to upgrade your range and bandwidth speed. This repair may be helpful if you require a stronger internet connection.
Werkzeuge
-
-
Turn the laptop over so its underside is up.
-
Use the PH#0 screw driver to remove all 7 mm the screws on the underside.
-

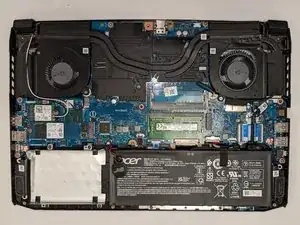

Pop the cover off around the edges.
-
-
-

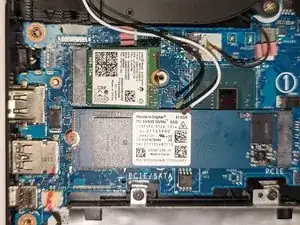

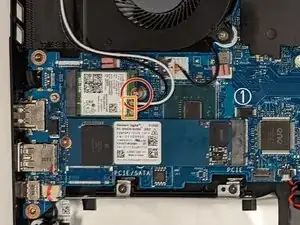

Use a Phillips #0 screwdriver to remove the single 5 mm screw that secures the Wi-Fi card.
-
Remove the two attached wires from the Wi-Fi card.
-
Pull the Wi-Fi card horizontally out of its socket.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
