Acer Nitro 5 AN517-51-56YW SSD Replacement

Geschrieben von: Billy Smith
  • Kommentare: 0
Acer Nitro 5 AN517-51-56YW SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 20 Minuten

Einleitung

Use this guide to replace the SSD in an Acer Nitro 5 AN517-51-56YW. The SSD is important for processing the storage on the computer, often speeding up the processing of the saved data.

Before replacing the SSD, make sure you have a compatible SSD replacement. SSDs that are non-compatible will result in an inoperative computer.

  1. ywxKTb3JJZVZscNu
    ywxKTb3JJZVZscNu
    ZaZLmH1Yt5HQmAFj
    Dl2nMLpBNThEUDS3

    • Place the laptop upside-down so that the fans are facing away from you.

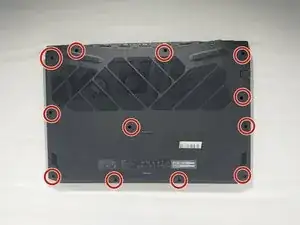

    • Remove the twelve 6.7 mm screws from the bottom cover using a Phillips #1 screwdriver.

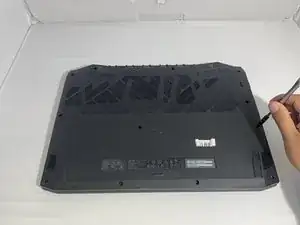

    • Pry the bottom cover away from the laptop using a spudger.

  2. pGHaYSxQAUprLW4M
    pGHaYSxQAUprLW4M
    ZQtDYX22NXqMVFRH

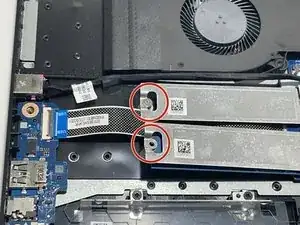

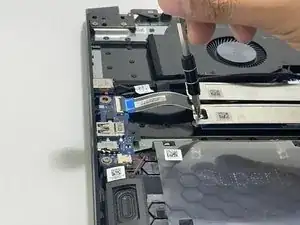

    • Remove the two 2.9 mm screws from the SSD cover using a Phillips #1 screwdriver.

  3. VcuBSQNXneSXFv5Y

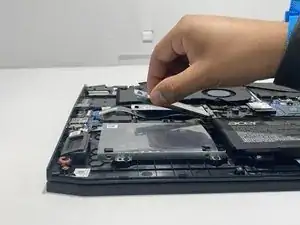

    • Remove the SSD plate cover.

  4. IDBNNVXmQppRiaEw

    • Carefully pull the SSD out of the socket.

    • Place the new SSD stick into the slot until a click is heard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
