Acer One 10 S1003-114M Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 - 20 Minuten

Einleitung

Is your battery is dead or weak, preventing it from powering your device? If so, here is a guide to fix the problem by removing and replacing your battery.

Werkzeuge

Schritt 1

Make sure the device is turned off and disconnected from any power source.

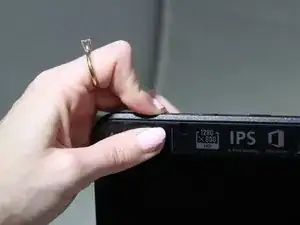

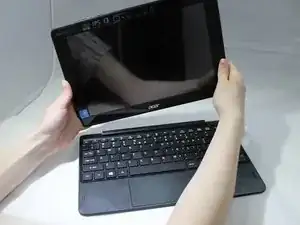

To disconnect the tablet from the keyboard attachment, open the laptop and lift the tablet component up from the keyboard dock.

Schritt 2

While handling the device, make sure to avoid pushing the power button. Device must remain powered off.
Metal spudgers and similar prying tools can damage internal components like the motherboard. It is ideal to use a regular black nylon spudger or a plastic opening tool, but for this device the metal jimmy and spudger were the only tools that worked.

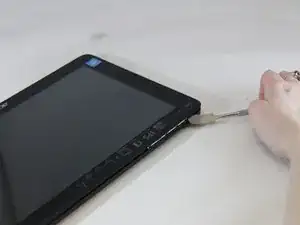

Starting from the corner of the tablet, use a jimmy to create a gap between the screen and the back covering.
Insert a metal spudger in the gap that you created with the Jimmy.
Slowly maneuver the metal spudger along the perimeter of the tablet to pry the screen and back covering apart.

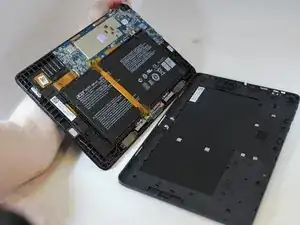

Separate the back covering from the screen.

Schritt 3

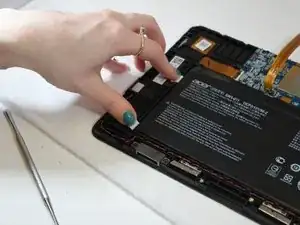

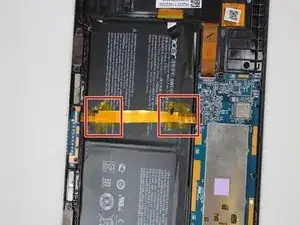

Using your hands, peel off the Polyimide tape (yellow tape).

Schritt 4

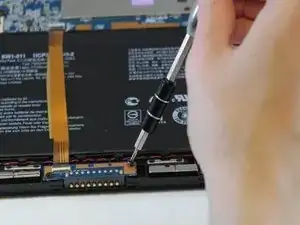

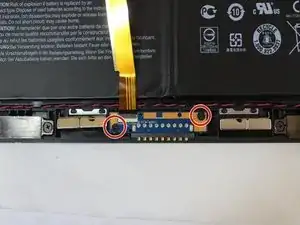

Using the Phillips #00 screwdriver, unscrew the two 2mm screws at the bottom of the tablet and open the ZIF latch.

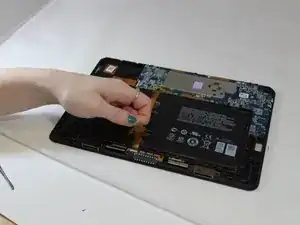

Gently remove the gold ribbon cable covering the battery and set it aside.

for removing the upper-end of the ribbon, one have to lift a little bit the connector, then it is very easy to extract the upper side of the ribbon

trasferimento trasferimento -

Schritt 5

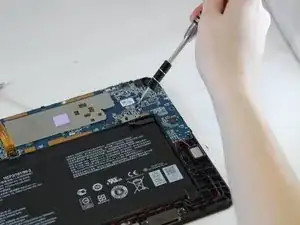

Using the Phillips #00 screwdriver, unscrew the two 2mm screws at the top right of the battery.

Schritt 6

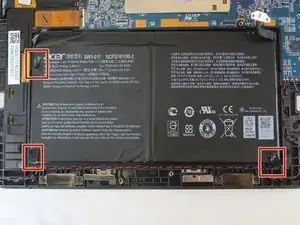

Peel the three shiny black stickers from the battery (top left, bottom right, and bottom left), but keep them attached to the motherboard.

Schritt 7

Battery is adhered to the tablet.
Avoid putting pressure on the glass while separating the battery from the screen.

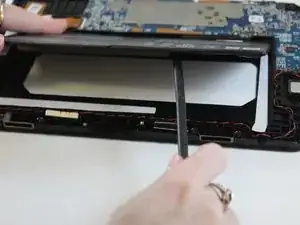

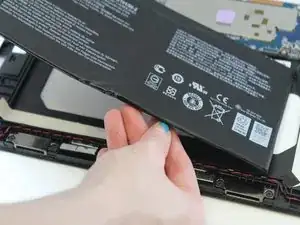

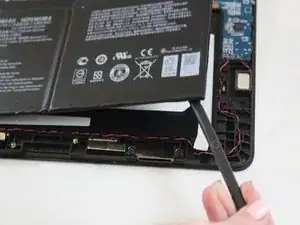

Use the spudger to separate the battery from glue that holds the battery to the screen. Carefully pry the battery from the tablet.
