Einleitung

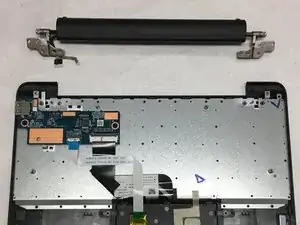

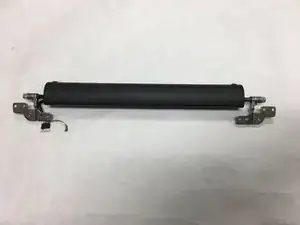

This guide will walk you through the steps necessary to replace your screen hinge. There are multiple small screws and delicate parts, so take your time and stay organized.
-
-

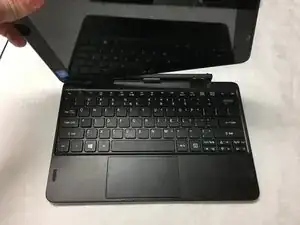

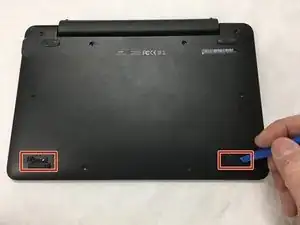

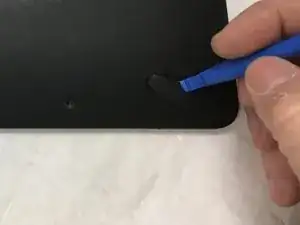

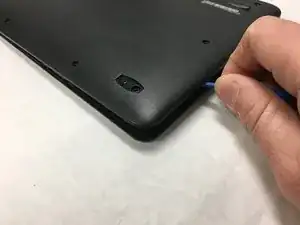

Turn over the keyboard and use the plastic opening tool to remove the two adhesive backed rubber pads furthest from the hinge.
-
-
-

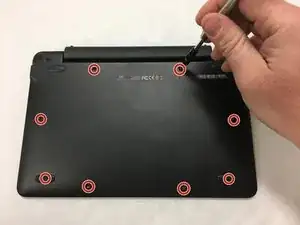

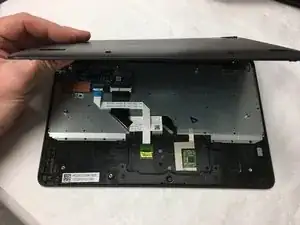

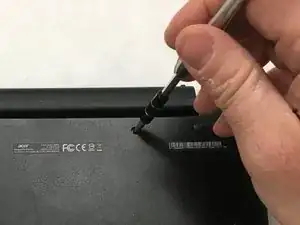

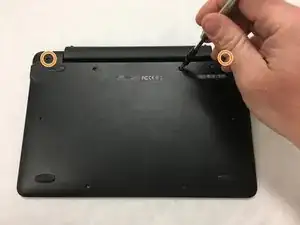

Remove the ten total screws from the back cover with a Phillips #1 screwdriver.
-
8 screws 4.25mm in length with 4.00mm diameter heads.
-
2 screws 6.00mm in length with 4.00mm diameter heads.
-
-
-

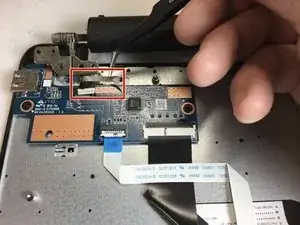

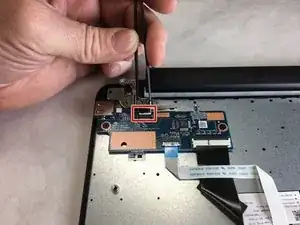

Use a pair of tweezers to remove the electrical connector for the hinge. Pull gently while wiggling the connector back and forth.
-
Remove the adhesive tape holding the wire down.
-
To reassemble your device, follow these instructions in reverse order.
