Einleitung

This guide will show you how to successfully replace a damaged or dead battery in your device.

  1. vW1XVRIONomDmYEy
    vW1XVRIONomDmYEy
    OcuXvPcMKOHZ3ROl
    • Power off the device and make sure it is disconnected from any external devices.

    • Use a plastic opening tool to create a gap between the front and back casing of the device.

    • Slowly maneuver the plastic tool around the entire perimeter of the tablet to separate the front and back.

  2. 3Mtj4NlMiUFQQMCq
    • Set the device screen side down and remove the back casing.

  3. 2vqEYoEIjO3abU2E
    2vqEYoEIjO3abU2E
    4rfkMJZxMLVVeWoB
    df5Yq6aaOmISsQM4

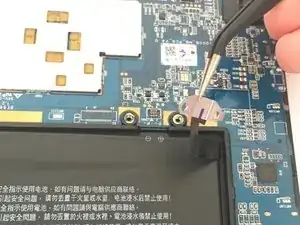

    • Remove the two pieces of transparent yellow tape inside the device.

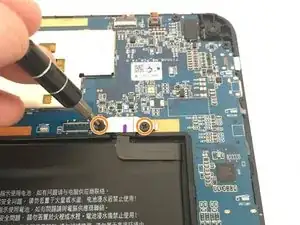

    • Using the Phillips #0 screwdriver, remove the two screws on either side of the connector.

    • Grab the the connector with tweezers and pull it slightly away from the motherboard.

  4. vDCxEN45qSYPXvBD
    vDCxEN45qSYPXvBD
    1ctKKlDlEjOCFUPF

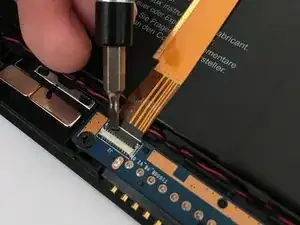

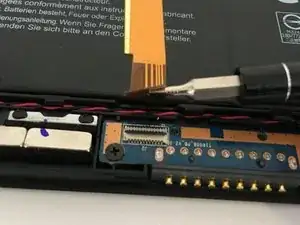

    • Flip the small black latch up on the connector where the ribbon inserts.

    • Gently pull the ribbon out of the connection.

    • Repeat this process on the upper orange ribbon connection.

  5. JxWd4G4rkTRsoEbN
    JxWd4G4rkTRsoEbN
    PjHIQUe2vhIfrZNe

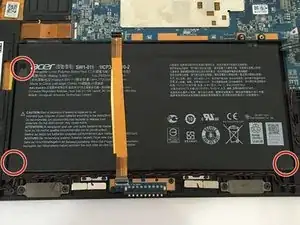

    • Peel back the black tape holding the battery in the three corners of the battery.

  6. vaMIDb1F5ZVRncwU
    vaMIDb1F5ZVRncwU
    cJ6HojuXpr3SnQeV

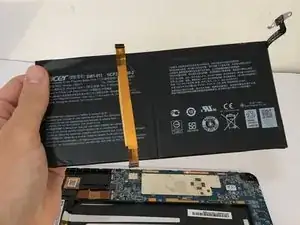

    • Carefully pry the battery off of the adhesive on one side with a plastic spudger.

    • Remove the battery from the device.

    • We recommend to NOT use a metal spudger for this guide as a metal spudger can easily puncture lithium-ion batteries and cause further damage to yourself and the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
