Acer One 10 S1003-19GY Keyboard Ribbon/Dock Repair

Geschrieben von: Trey Wintzinger
  • Kommentare: 1
Acer One 10 S1003-19GY Keyboard Ribbon/Dock Repair

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

9 - 10 Minuten

Einleitung

The keyboard dock and ribbon will be removed in this guide.

  1. vW1XVRIONomDmYEy
    vW1XVRIONomDmYEy
    OcuXvPcMKOHZ3ROl

    • Power off the device and make sure it is disconnected from any external devices.

    • Use a plastic opening tool to create a gap between the front and back casing of the device.

    • Slowly maneuver the plastic tool around the entire perimeter of the tablet to separate the front and back.

  2. 3Mtj4NlMiUFQQMCq

    • Set the device screen side down and remove the back casing.

  3. 2bRRJoQmPpeLnaOF
    2bRRJoQmPpeLnaOF
    XVLPFOYncZE5saP2
    V5Ro5nIYRdGeMQds

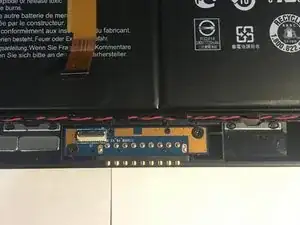

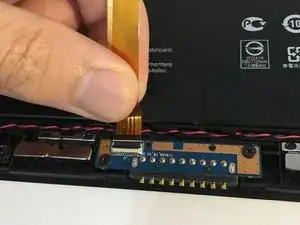

    • Flip the latch and carefully pull the ribbon free.

  4. cSqTltnifDnCxIZA
    cSqTltnifDnCxIZA
    aV6fJhqasdgtyNiG

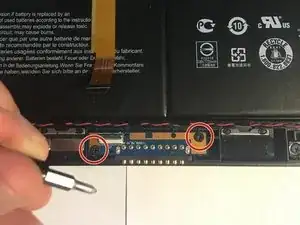

    • Remove the two screws holding the dock in place using a Phillips #0 screwdriver.

    • Pull the dock out and slide it out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
