Acer One 10 S1003-19GY Rear/Front Camera Replacement

Power off the device and make sure it is disconnected from any external devices.

Use a plastic opening tool to create a gap between the front and back casing of the device.

Slowly maneuver the plastic tool around the entire perimeter of the tablet to separate the front and back.

Set the device screen side down and remove the back casing.

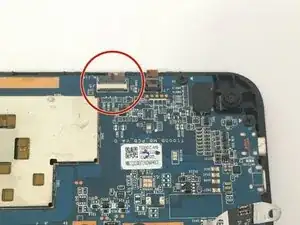

Locate the Rear Camera in the upper right hand corner of the motherboard.

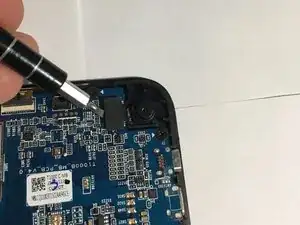

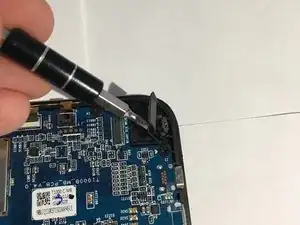

Using a relatively thin flat head screwdriver, pry the camera connection from the motherboard.

The connection should remove easily as it just snaps to the motherboard.

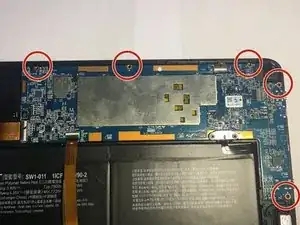

Remove the five screws on the outer edge of the motherboard using a Phillips #0 screwdriver.

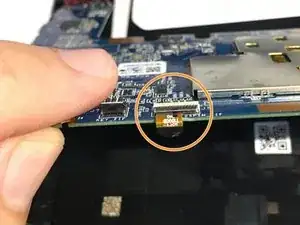

Open the black flap on the connection and gently pull the ribbon from it.

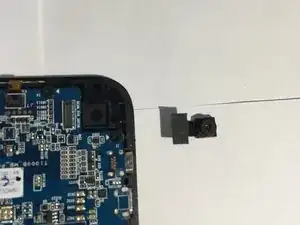

Slightly raise the motherboard from the upper side to remove the camera as shown.
