Acer Predator 17 G9-791 Display Replacement

Geschrieben von: Adeline Slocum
  • Kommentare: 0
Acer Predator 17 G9-791 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

22

Zeitaufwand

30 - 35 Minuten

Einleitung

If the display of the Acer Predator 17 G9-791 is completely black or dim. The display might be disabled. To fix this, hold the “Fn” key located near the bottom left of the keyboard and press “F5.” If the display is disabled, this will re-enable the display.

If this does not fix the issue, repeat the above step once more. Then, hold down the Windows key and press “P” twice. The computer may have been set to “Second screen only,” which will set the computer back to “PC screen only.”

If nothing from above fixes the issue, use this guide to replace the display.

  1. hQHL3Ks1iE2Yc3bO

    • The service panel can be located on the bottom of the device. It is shown here as the panel located in the middle of the device, going from the upper vents to the bottom of the device.

  2. OEC52xhEVDQjPjkR
    OEC52xhEVDQjPjkR
    toYEURSZ5lXnMHOF

    • Loosen the two Phillips #0 screws.

    • Pull up slightly on the top of the panel to help fully separate the screws from the rest of the device.

  3. g2k6N2R5iFqQkCN4

    • Continue pulling up on the panel to separate it from the laptop and remove it.

  4. HRE5dPNAKiyrWIBB
    HRE5dPNAKiyrWIBB
    VKTej1CvmcWduCdX
    sIrMttVHnTlMSsth

    • Remove the nine 4.5 mm Phillips #0 screws from the panel.

    • Remove four 14 mm Phillips #0 screws.

    • Remove six 7 mm Phillips #0 screws.

  5. YhTVJ22jTLekCseZ

    • Slide the "unlock" slider up located to the right of the service panel and pull the disc tray out.

  6. VAOiVJUVwFNSOhpF

    • Remove the two 4.5 mm Phillips #0 screws located underneath the removed optical drive.

  7. OPBWPemTGplvXdfK
    OPBWPemTGplvXdfK
    aRu6uISmKwDgQEc3

    • Pry up on the edges of the bottom cover and lift the bottom case off of the device.

  8. AaSB2k2hqHkOdA5s

    • Remove the six 4 mm Phillips #0 screws from the battery.

  9. UXerqVJIBK2NeGSn
    UXerqVJIBK2NeGSn
    vZAeBBbgZxtvkSvS

    • Disconnect the battery connector from the motherboard.

  10. NK3pGPQyVaHSv1eC

    • Gently lift the battery and remove it from the device.

  11. PKSrmuJX4wMnC1Uj
    PKSrmuJX4wMnC1Uj
    NQMO2dWguodkYQe2

    • Remove the five 4.5 mm Phillips #0 screws located on the perimeter of the fans.

  12. ccnwdSyljmJNaweG
    ccnwdSyljmJNaweG
    CyDUyHsvLxirVLnW

    • Unscrew the six Phillips #0 screws enough to loosen the assembly from the motherboard.

  13. NLNdurAWYNJsGmcp
    NLNdurAWYNJsGmcp
    dgeSGaxPyHUdR4HO
    JM44WnmuJKEqMxCB

    • Detach the left fan's cord from the motherboard.

  14. vG12VC1qWIrgIaCq
    vG12VC1qWIrgIaCq
    46BFGBvaEH5eKi5K
    65pUgLYsjPvAZiR2

    • Detach the right fan's cord from the motherboard.

  15. fiQXw2DBKJRR3dsm
    fiQXw2DBKJRR3dsm
    5yKdWowlPsgbqfCs
    pgMnVfy5paT5CnV4

    • Lift the fan assembly up and out.

  16. B33dWk6bJ4OPoUUW
    B33dWk6bJ4OPoUUW
    G2k1EuBjRxnfi3Pw
    AHkPmbFn3qtVywaS

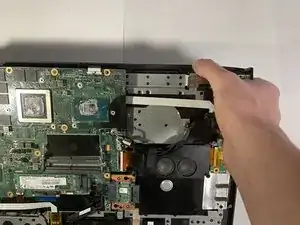

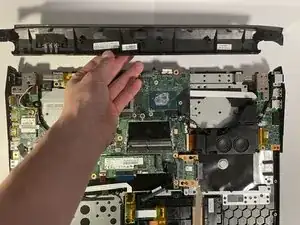

    • Push down on the back of the device to unclip this panel, removing it by pulling it out the back of the device.

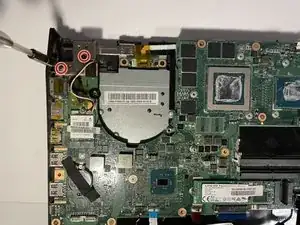

  17. M1BUQRRwuE2vUlGo
    M1BUQRRwuE2vUlGo
    P2LKmvSBCry1NCCA

    • Remove two black 7 mm Phillips #0 screws from the left display bracket.

    • Remove the two silver 5 mm Phillips #0 screws from the left display bracket.

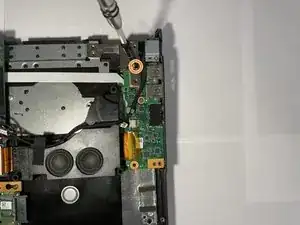

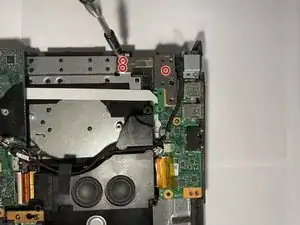

  18. UNmPNgfg2H5ImnDP
    UNmPNgfg2H5ImnDP
    5xOvGtaCxLcgMrUP

    • Remove three silver 5 mm Phillips #0 screws from the right display bracket.

    • Remove one black 7 mm Phillips #0 screw from the right display bracket.

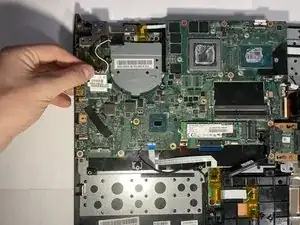

  19. jbLCX1HG5jyvBb2A
    jbLCX1HG5jyvBb2A
    ePqug4kgRPgQtXyo
    lGWXL3FXiNkEUcAP

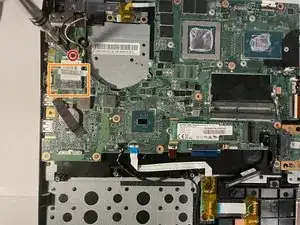

    • Remove one 4.5 mm Phillips #0 screw from the WLAN card.

    • Pull the WLAN card out.

  20. UefnpNfxwAEGoYAb
    UefnpNfxwAEGoYAb
    IFaVjfOQNLunWpRB

    • Turn the device around.

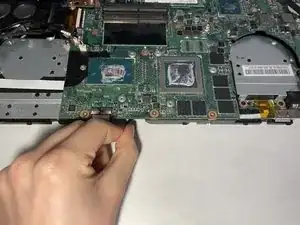

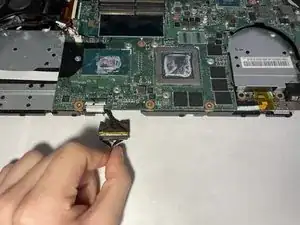

    • Pull the black tab to disconnect one wire from the bottom of the motherboard.

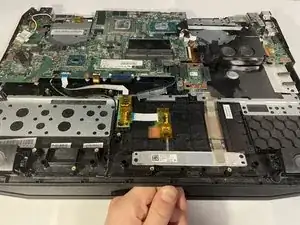

  21. WvgNuGaq36yQBwmp
    WvgNuGaq36yQBwmp
    coFnNukEcaw2M1L4

    • Turn the device around.

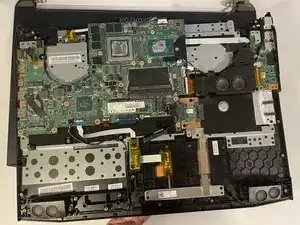

    • Opening the cover slightly, pull the bottom half of the device towards you.

  22. mOcJbINCnVBFHvLe
    mOcJbINCnVBFHvLe
    SmJa3EcdJACMH4Yk

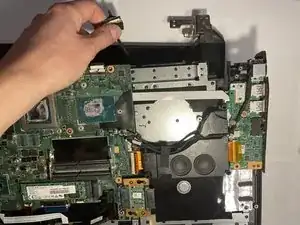

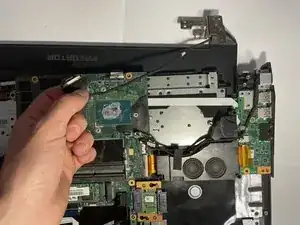

    • Separate the wire that was unplugged two steps ago from the bottom of the device.

    • This wire runs in a track and pulling on it slightly will separate it from the bottom half of the device.

    • When reinstalling, ensure this wire in placed back in its track before attempting to put the new display on the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
