Acer Predator 17 G9-791 Motherboard Replacement

Geschrieben von: Jimmy Coffey
  • Kommentare: 0
Acer Predator 17 G9-791 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

28

Zeitaufwand

25 - 30 Minuten

Einleitung

If when charging your Acer Predator 17 G9-791 it boots up and then shuts down or has screen issues such as freezing or a blue screen, then use this guide to replace the motherboard.

  1. hQHL3Ks1iE2Yc3bO

    • The service panel can be located on the bottom of the device. It is shown here as the panel located in the middle of the device, going from the upper vents to the bottom of the device.

  2. OEC52xhEVDQjPjkR
    OEC52xhEVDQjPjkR
    toYEURSZ5lXnMHOF

    • Loosen the two Phillips #0 screws.

    • Pull up slightly on the top of the panel to help fully separate the screws from the rest of the device.

  3. g2k6N2R5iFqQkCN4

    • Continue pulling up on the panel to separate it from the laptop and remove it.

  4. HRE5dPNAKiyrWIBB
    HRE5dPNAKiyrWIBB
    VKTej1CvmcWduCdX
    sIrMttVHnTlMSsth

    • Remove the nine 4.5 mm Phillips #0 screws from the panel.

    • Remove four 14 mm Phillips #0 screws.

    • Remove six 7 mm Phillips #0 screws.

  5. YhTVJ22jTLekCseZ

    • Slide the "unlock" slider up located to the right of the service panel and pull the disc tray out.

  6. VAOiVJUVwFNSOhpF

    • Remove the two 4.5 mm Phillips #0 screws located underneath the removed optical drive.

  7. OPBWPemTGplvXdfK
    OPBWPemTGplvXdfK
    aRu6uISmKwDgQEc3

    • Pry up on the edges of the bottom cover and lift the bottom case off of the device.

  8. AaSB2k2hqHkOdA5s

    • Remove the six 4 mm Phillips #0 screws from the battery.

  9. UXerqVJIBK2NeGSn
    UXerqVJIBK2NeGSn
    vZAeBBbgZxtvkSvS

    • Disconnect the battery connector from the motherboard.

  10. NK3pGPQyVaHSv1eC

    • Gently lift the battery and remove it from the device.

  11. PKSrmuJX4wMnC1Uj
    PKSrmuJX4wMnC1Uj
    NQMO2dWguodkYQe2

    • Remove the five 4.5 mm Phillips #0 screws located on the perimeter of the fans.

  12. ccnwdSyljmJNaweG
    ccnwdSyljmJNaweG
    CyDUyHsvLxirVLnW

    • Unscrew the six Phillips #0 screws enough to loosen the assembly from the motherboard.

  13. NLNdurAWYNJsGmcp
    NLNdurAWYNJsGmcp
    dgeSGaxPyHUdR4HO
    JM44WnmuJKEqMxCB

    • Detach the left fan's cord from the motherboard.

  14. vG12VC1qWIrgIaCq
    vG12VC1qWIrgIaCq
    46BFGBvaEH5eKi5K
    65pUgLYsjPvAZiR2

    • Detach the right fan's cord from the motherboard.

  15. fiQXw2DBKJRR3dsm
    fiQXw2DBKJRR3dsm
    5yKdWowlPsgbqfCs
    pgMnVfy5paT5CnV4

    • Lift the fan assembly up and out.

  16. fKyxlCoGXQvr64KQ

    • Remove the two 5 mm Phillips #0 screws from the small PCB.

  17. T2H1xANgsKxqsvPV
    T2H1xANgsKxqsvPV
    dnkQk5LII2yqcsMI
    ATW6GuXB2YOVSsfH

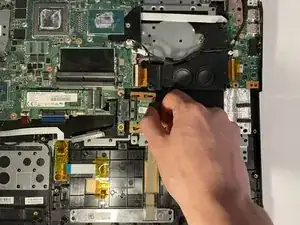

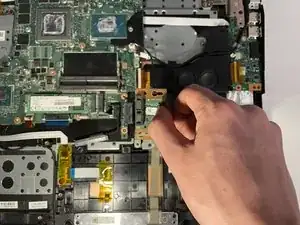

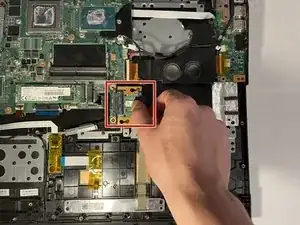

    • Pull the small PCB to the right and then up to remove it from the device.

  18. GiNpMQFbJEZTabLt
    GiNpMQFbJEZTabLt
    eXuUFuXw4G5NnmcC

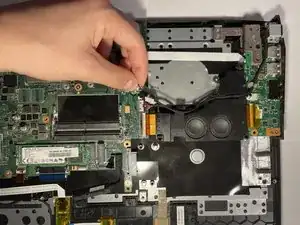

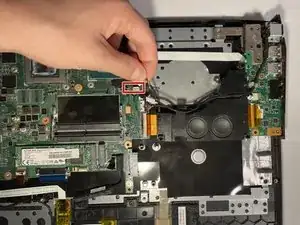

    • Pull up on the “woofer” wire to remove it from its connector.

  19. li6b24IZSfxVNFTY
    li6b24IZSfxVNFTY
    kBgwv6Pg3YfEhN6F

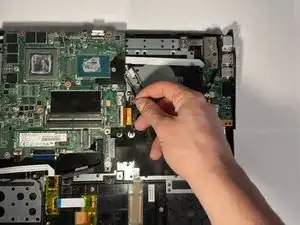

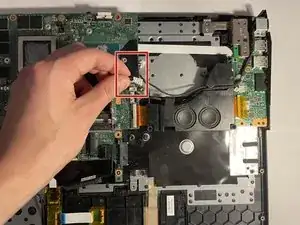

    • Remove the two connectors.

  20. YB5amoFScfCVLDkK
    YB5amoFScfCVLDkK
    KGXShvuYPhZgTD12

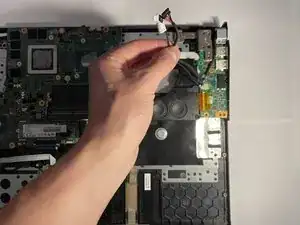

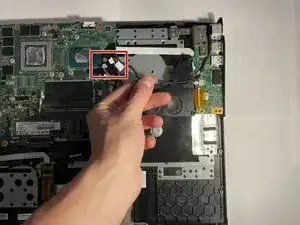

    • Separate the same two wires from the subwoofer.

  21. nmLjLOhthoucFHB5
    nmLjLOhthoucFHB5
    RAFahAG4IbgLhgE3

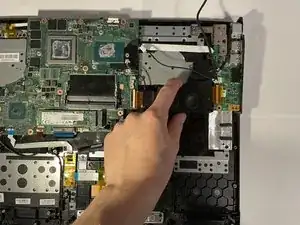

    • Pull the subwoofer up and out of the device.

  22. lkZoxqnGbCpKZxoC
    lkZoxqnGbCpKZxoC
    df2QwOTtLQS5argJ
    YLRBCAebCxkaObFO

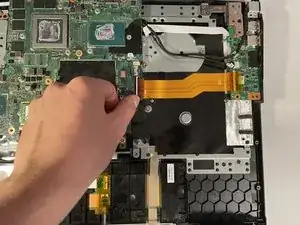

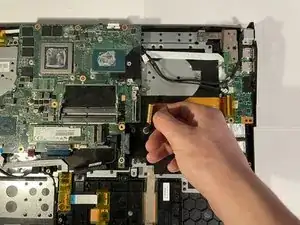

    • Remove the six connectors.

    • Some require you to flip the white part of the connector up first to remove them.

  23. FWsUgSWXTBFAHtWg
    FWsUgSWXTBFAHtWg
    h44t3oTJ4AACPNKJ
    xAP62H1kUZFhZE5j

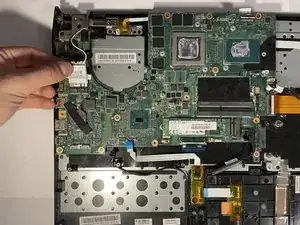

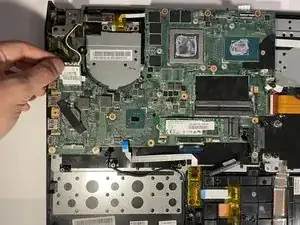

    • Remove one 4.5 mm Phillips #0 screw from the WLAN card and pull the card out.

  24. ZjHGAKJ4ksEldF2K
    ZjHGAKJ4ksEldF2K
    oDJGpapIeVGMtefc

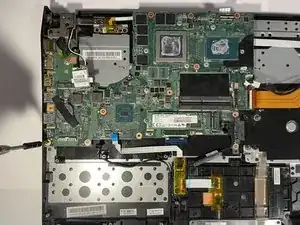

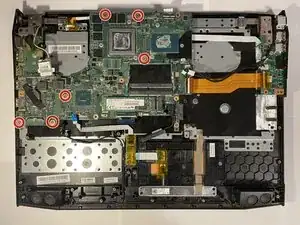

    • Remove six 5 mm Phillips #0 screws from the motherboard.

  25. AP1FcoLpoXNOe5XK
    AP1FcoLpoXNOe5XK
    ZnTloMyYsgenLKFa

    • Turn the device around.

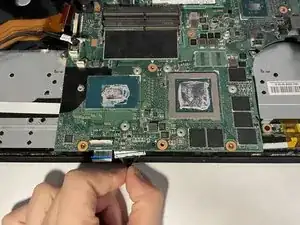

    • Use the black tab to disconnect the one connector on the bottom of the motherboard.

    • When reinstalling you should plug this connector back in as you set the motherboard down.

  26. tJGyc345AqLRodEi

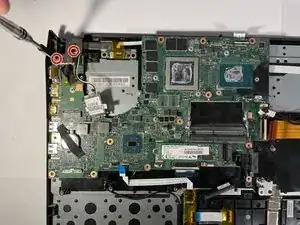

    • Remove the two black 7 mm Phillips #0 screws from the left display bracket.

  27. WITDKaOOKmDYgs52

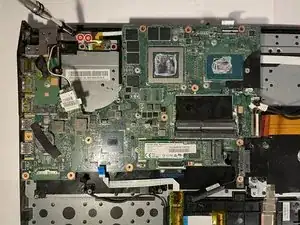

    • Remove the two silver 5 mm Phillips #0 screws from the left display bracket.

  28. oFkL2bqiwjr3hJDy
    oFkL2bqiwjr3hJDy
    NcAbHfjDE5tAVsTe

    • Pull the motherboard up and out of the device. You may need to open the lid slightly for the removal process.

    • When reinstalling the motherboard, ensure that wires do not get stuck under the motherboard as you set it back down.

Abschluss

To reassemble your device, follow these instructions in reverse order.
