Acer Predator Helios 300 (2020) Battery Replacement

Geschrieben von: Steven Yuen
  • Kommentare: 0
Acer Predator Helios 300 (2020) Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

Use this guide to change the battery on your Acer Predator Helios 300 (2020).

Model Number: PH3-15-53

The laptop battery is essential to provide portable usage since it keeps the laptop powered on.

You might want to replace your laptop battery if it is slow to charge or overheating. If the laptop is not charging, you might want to check if the power adapter for the battery is plugged in correctly before you replace the battery.

If you decide to follow this guide, what you will need is a Philp’s screwdriver and the replacement battery in order to get started.

  1. wQQv21NjDn1BTlec
    wQQv21NjDn1BTlec
    B3y3g2fnLSm22hmZ

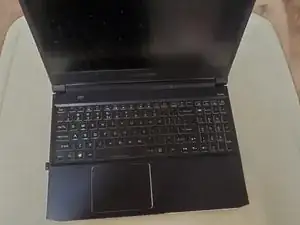

    • Turn off the laptop by holding the power button for 7 seconds.

  2. MS1AQDrsSMsUJNmr
    MS1AQDrsSMsUJNmr
    fFykHVMFUajDWEZP

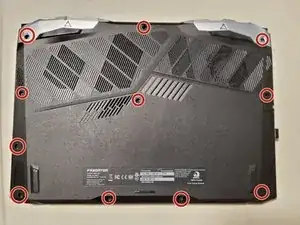

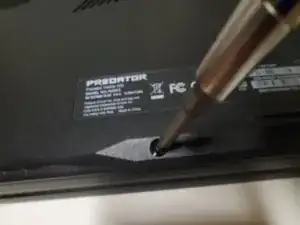

    • Remove the eleven black 7.0 mm screws using a Phillips #00 screwdriver.

  3. CyPxTyUV2X2IDUD1
    CyPxTyUV2X2IDUD1
    sReIFIxRmID2Gkc5

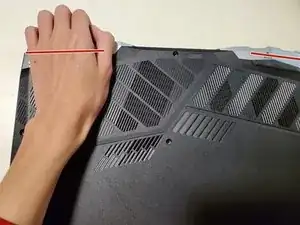

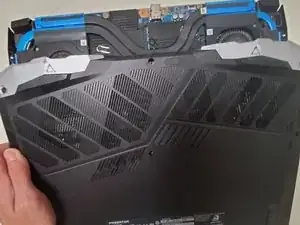

    • Put your hands on the white part of the chassis and pull up until you hear a snap.

    • Lift up the back panel and remove it from the device.

  4. 1TTdCnOAL2ZbMfnJ
    1TTdCnOAL2ZbMfnJ
    YhflsOxq5objCSin
    BUL4yeNqYFsEGqCM

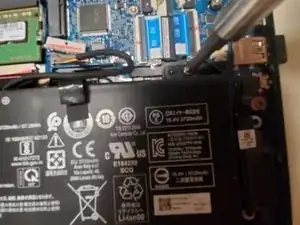

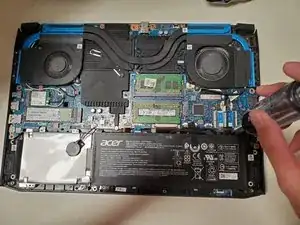

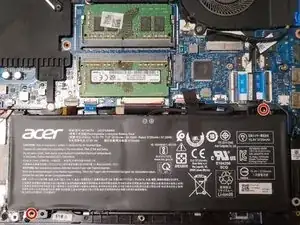

    • Remove the two 4.0 mm golden screws using the Phillips #00 screwdriver.

  5. TJDOnBWBSKXV6KKY
    TJDOnBWBSKXV6KKY
    woUBICl6REK5d1mI
    ujLRVnHdpFe5FEn6

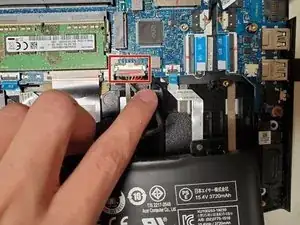

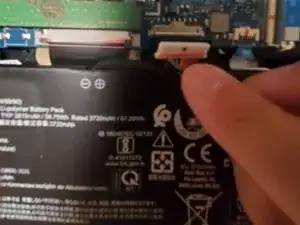

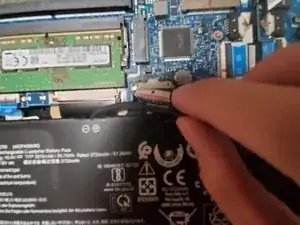

    • Disconnect the battery connector.

  6. NYqBgAK2KL1O5tZ6

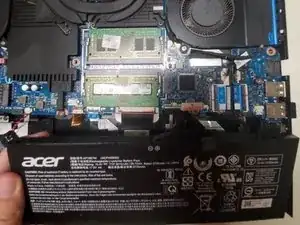

    • Remove the battery from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.

For optimal performance, after completing this guide, calibrate your newly installed battery.

Take your e-waste to an R2 or e-Stewards certified recycler.
