Acer Spin 3 SP315-51-757C Hard Drive Replacement

Geschrieben von: Skyler Ognibene
  • Kommentare: 2
Acer Spin 3 SP315-51-757C Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

When an Acer Spin 3 SP315-51-757C turns on, but the operating system does not start, there is usually a problem with the hard drive. You may also want to get a hard drive with more storage and use it to replace your old hard drive. This guide shows you how to properly unplug and remove your hard drive from your laptop. When installing a brand new hard drive, be sure to have Windows installed onto the hard drive before putting it in your laptop.

  1. UUx5BsHTuQBv3Jtg
    UUx5BsHTuQBv3Jtg
    bywV2BIQn2TGVHTH

    • Remove eleven Phillips #0 screws from the back panel.

  2. rvB3tMtFRffWCRTj
    rvB3tMtFRffWCRTj
    wbhlm5E3UOXBSegc
    MRFIughB2WRYhEgy

    • Using an opening tool, pry open the back panel, starting at the silver screen hinges.

    • You may need to apply more force than usual. If you don't find any success at the hinges, you can try to start at another area that looks easier to open.

    • You can also use some plastic opening picks to help hold parts of the panel open while you work on other sides.

  3. MchOfwqEIcINngTP

    • Lift the back panel off of the laptop.

  4. fpwNP1ZHa5FhUDhD
    fpwNP1ZHa5FhUDhD
    VCmhRIYQid2V4tK2

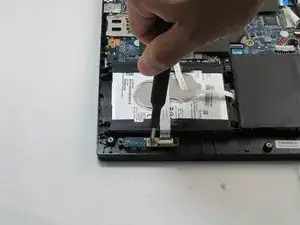

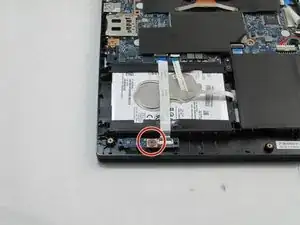

    • Loosen the single Phillips #0 screw holding the hard drive in place.

  5. xFuPX5tTc2iTjtiP
    xFuPX5tTc2iTjtiP
    FJtCuEActBst1Cnc

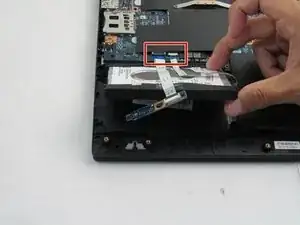

    • Gently lift the closer side of the hard drive out of its slot.

    • Make sure not to pull too hard on the cables plugged into the motherboard.

  6. bMxhXHj1NhlhEk2c

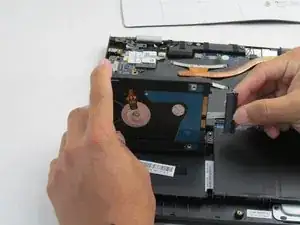

    • Carefully unplug the cable connected to the side of the hard drive.

  7. MUoykHrIGnxWkZPZ
    MUoykHrIGnxWkZPZ
    CJ1wEdqVkwAHuaEF

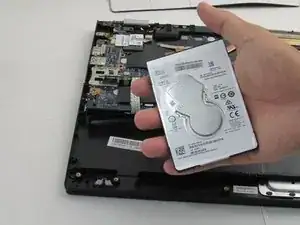

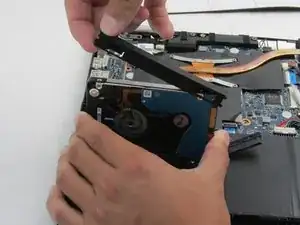

    • Remove each rubber edge from the hard drive, and reassemble with a new hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Skyler Ognibene

Mitglied seit: 17/09/19

919 Reputation

2 Kommentare

Awesome. Thanks for the tips here. Do you have any recommendations on what SSD may go with Acer Spin 3 SP315-51-757C ? I am a little clue less here since i am new to this, and any feedback here would help. Thanks.

S B -

I just replaced my HDD with a 1TB Crucial MX500 SSD. It was easy to clone the drive and simple to install. My computer went from almost unusable to better than new, I highly recommend it.

Adam Kahler -
