Acer Spin 3 SP315-51-757C Motherboard Replacement

Geschrieben von: Skyler Ognibene
  • Kommentare: 2
Acer Spin 3 SP315-51-757C Motherboard Replacement

Schwierigkeitsgrad

Very difficult

Schritte

13

Zeitaufwand

15 - 30 Minuten

Einleitung

The main component of the Acer Spin 3 SP315-51-757C is the motherboard, since it is the central piece of the computer than connects all other parts. A faulty motherboard can be the cause of a large number of problems. Replacing your motherboard should only be your last resort if no other guides fix your computer’s issue.

  1. UUx5BsHTuQBv3Jtg
    UUx5BsHTuQBv3Jtg
    bywV2BIQn2TGVHTH

    • Remove eleven Phillips #0 screws from the back panel.

  2. rvB3tMtFRffWCRTj
    rvB3tMtFRffWCRTj
    wbhlm5E3UOXBSegc
    MRFIughB2WRYhEgy

    • Using an opening tool, pry open the back panel, starting at the silver screen hinges.

    • You may need to apply more force than usual. If you don't find any success at the hinges, you can try to start at another area that looks easier to open.

    • You can also use some plastic opening picks to help hold parts of the panel open while you work on other sides.

  3. MchOfwqEIcINngTP

    • Lift the back panel off of the laptop.

  4. F6BihIVKQd6E6Qme
    F6BihIVKQd6E6Qme
    xZAS12XZDOL1GUtA

    • Remove the two Phillips #0 screws holding the battery inside the laptop case.

  5. wWHBHTC2abjvmZnn
    wWHBHTC2abjvmZnn
    Hr5c5RybGP6f3Ylx
    BBSvWGIDpm6w4ZmO

    • Using either your hands or a pair of tweezers, carefully pull the battery's cable out of its motherboard port.

  6. V6wcaImyAqnDHL6F

    • Using your hands, lift up on the battery from its slot, and carefully slide it away from you before fully lifting it out of the case.

  7. DYWyXrcgrxsSSacQ

    • The charger port's inner cable may be covered by a manufacturer sticker, which can be easily removed.

    • Using your nails or tweezers, unplug the charger port cable from the motherboard.

  8. HBEctWW14ashKWGD

    • Gently lift the charger port out of its slot in the laptop casing.

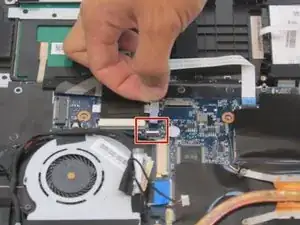

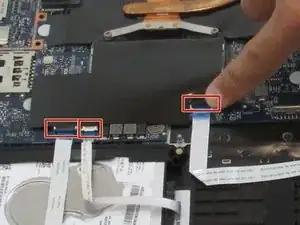

  9. kGfGe2PVSAXnct1X
    kGfGe2PVSAXnct1X
    InaVLX1CvmZfN4h1

    • Lift the three black tabs to release the cable connectors.

    • After the tabs are lifted, the white cables with blue ends can be pulled out of their slots.

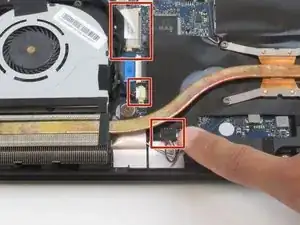

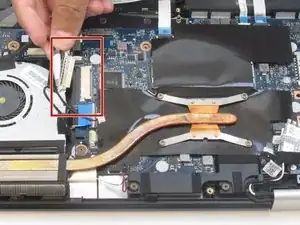

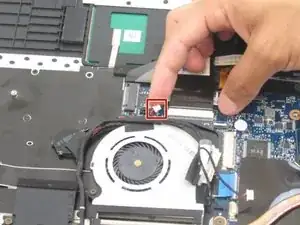

  10. vNyATfBIVKkFykJa
    vNyATfBIVKkFykJa
    xFbe4QcS1GleEsZS
    VJOHc1bULZpowOlr

    • Remove the cables near the fan by pulling them carefully out of their slots.

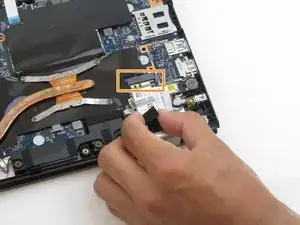

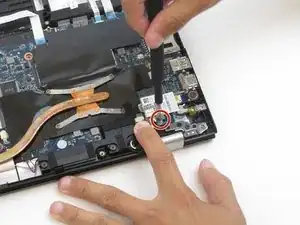

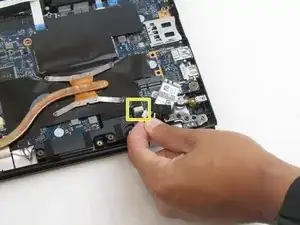

  11. nfiXSTH3NPAH2ilx
    nfiXSTH3NPAH2ilx
    A1PiCbm2X24HYEuf
    MDHLLUHCrABSNCCO

    • Remove the single Phillips #0 screw.

    • Unplug the speaker cable.

    • Unplug the secondary speaker cable.

    When looking for the screw, there was a felt tab covering it, making it difficult to identify the screw. It would benefit the user if you noted that they should lift the felt tab.

    Tyler Smith -

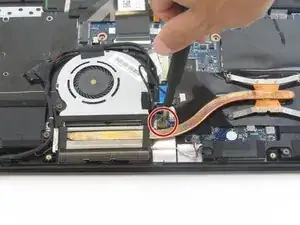

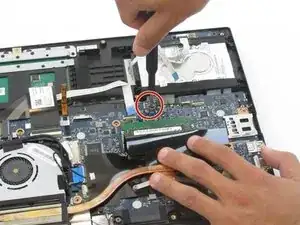

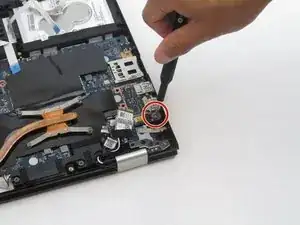

  12. 1sebAH6APucBkws5
    1sebAH6APucBkws5
    s1QeWxLL3dgTw2t5
    oWiKN2owlZeutEQf

    • Remove the three Phillips #0 screws attached to the motherboard.

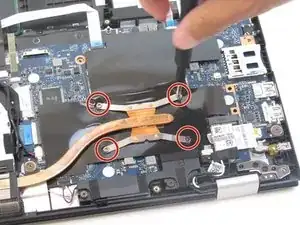

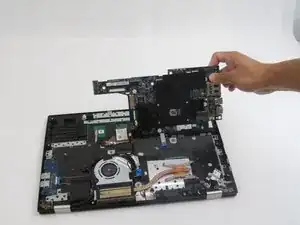

  13. DcyXbwlNm6aabJTe
    DcyXbwlNm6aabJTe
    ZPHHKVNOMkVEgmQP

    • Use a Phillips #0 screwdriver to remove four screws from the heat sink.

    • Carefully slide the motherboard from under the heat sink (it is easiest to slide the motherboard to the right).

    On the final step, we noticed there was another cable plugged into the motherboard to the left of the fan. This isn’t noted or pointed out in any of the other steps.

    Tyler Smith -

Abschluss

To reassemble your device, follow these instructions in reverse order.
