Acer Spin 3 SP315-51-79NT Fan Replacement

Geschrieben von: Michael Duross
  • Kommentare: 0
Acer Spin 3 SP315-51-79NT Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

Is your device overheating or not properly cooling? If so, the fan may be faulty and needs to be replaced. Follow the instructions in this guide to remove and replace the fan in the Acer Spin 3 SP315-51-79NT laptop.

  1. QYc1EfssCsBrCdG1
    QYc1EfssCsBrCdG1
    XIewm6fTTsUji1Au

    • Using the Phillips #1 screwdriver, remove twelve (12) screws from the back panel.

  2. 6cOGRMdCNjS5j1YU
    6cOGRMdCNjS5j1YU
    lBSjDwLcotSJ4Z3Y

    • Gently pry the back plate off with your fingers.

  3. 2JKpdRsZiFFw615Y
    2JKpdRsZiFFw615Y
    iOPJxDxdLsGyrf2E

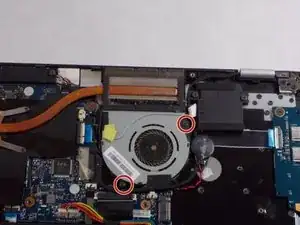

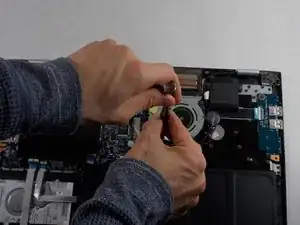

    • Using the Phillips #1 screwdriver, remove two screws securing the fan to the motherboard.

  4. VpD6KKoiAFxNuXUQ
    VpD6KKoiAFxNuXUQ
    YOimgWIWoHeZYojG

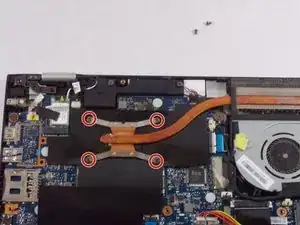

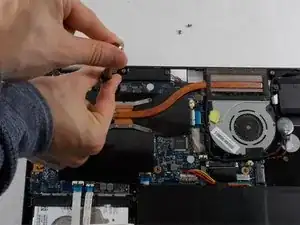

    • Using the same Phillips #1 screwdriver, unscrew four screws from the heatsink.

  5. ZHmhRWmoG5NhAnqX
    ZHmhRWmoG5NhAnqX
    XGdcZZhWpJieXUFc

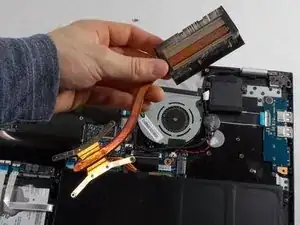

    • Remove the tape attached to the heat sink and the fan.

  6. 4mwDtuLtHdTImgy3
    4mwDtuLtHdTImgy3
    ayLiGsZjSFaPaPwT

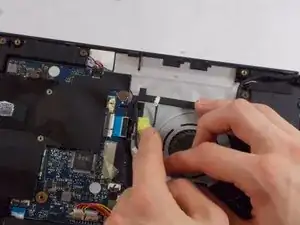

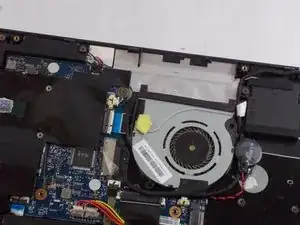

    • Unplug the fan from the motherboard.

  7. DssBButDASTplJJA

    • Gently remove the fan from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
