Acer Spin 3 SP315-51-79NT Speakers Replacement

Geschrieben von: Andrew Veiga
  • Kommentare: 0
Acer Spin 3 SP315-51-79NT Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 25 Minuten

Einleitung

Is the audio coming out from your device distorted or not playing? If so, the speakers may be faulty and need to be replaced. Follow the instructions in this guide to remove and replace the speakers in the Acer Spin 3 SP315-51-79NT laptop.

  1. QYc1EfssCsBrCdG1
    QYc1EfssCsBrCdG1
    XIewm6fTTsUji1Au

    • Using the Phillips #1 screwdriver, remove twelve (12) screws from the back panel.

  2. 6cOGRMdCNjS5j1YU
    6cOGRMdCNjS5j1YU
    lBSjDwLcotSJ4Z3Y

    • Gently pry the back plate off with your fingers.

  3. 2JKpdRsZiFFw615Y
    2JKpdRsZiFFw615Y
    iOPJxDxdLsGyrf2E

    • Using the Phillips #1 screwdriver, remove two screws securing the fan to the motherboard.

  4. VpD6KKoiAFxNuXUQ
    VpD6KKoiAFxNuXUQ
    YOimgWIWoHeZYojG

    • Using the same Phillips #1 screwdriver, unscrew four screws from the heatsink.

  5. ZHmhRWmoG5NhAnqX
    ZHmhRWmoG5NhAnqX
    XGdcZZhWpJieXUFc

    • Remove the tape attached to the heat sink and the fan.

  6. 4mwDtuLtHdTImgy3
    4mwDtuLtHdTImgy3
    ayLiGsZjSFaPaPwT

    • Unplug the fan from the motherboard.

  7. DssBButDASTplJJA

    • Gently remove the fan from the device.

  8. GXIQGYjeXAmGG6vZ
    GXIQGYjeXAmGG6vZ
    qIpK1rNgtLQ6yJQE

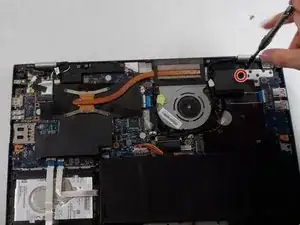

    • Remove two screws (one on each speaker) securing the speakers to the motherboard with the Phillips #1 screwdriver.

  9. aUmhtZfWQrCHY1MN
    aUmhtZfWQrCHY1MN
    doLrGohP6BsIOxwZ

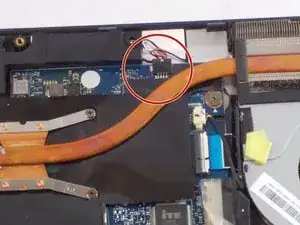

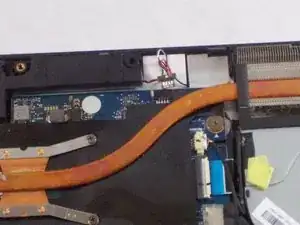

    • Unplug the speaker cable from the motherboard.

  10. g3WqYIBlEwRYVi3J

    • Carefully unravel the speaker cables and remove the speakers from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
