Acer Spin 5 N17W2 Motherboard Replacement

Geschrieben von: He Kai
  • Kommentare: 2
Acer Spin 5 N17W2 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

Motherboard is the main printed circuit board, it holds, and allows, communication between many of the crucial electronic components of a system, such as the central processing unit and memory, and provides connectors for other peripherals, interface cards, and daughtercards: sound cards, video cards, network cards, hard drives, or other forms of persistent storage; TV tuner cards, cards providing extra USB or FireWire slots and a variety of other custom components. If in any case you want to replace your Acer Spin5 laptop’s motherboard, follow the instructions of this guide.

  1. hcsDxJREjYAIGDsX
    hcsDxJREjYAIGDsX
    NAESaQZL2IorwYol

    • Use the Phillips #1 screwdriver to remove six 6 mm screws.

    • Use the same screwdriver to remove six 5mm screws.

  2. I6NISstYjFgEVXl1

    • Use an opening tool to pry the back cover open.

  3. suFVsDuRDmFdbHQW

    • Remove two 5 mm screws by using the Phillips #1 screwdriver.

  4. RKsvR3N4RFamFtgT
    RKsvR3N4RFamFtgT
    gEMBMGcROCBFJ2st

    • Use two opening tools to disconnect the cooling fan from the motherboard.

    • Remove the fan from the device.

  5. eIDPjFxpYFSWyWqp

    • Remove four 5 mm screws using the Phillips #1 screwdriver.

  6. rvT2fvsyTOKICh2N

    • Take off the black heat sink (be careful of the grey thermal grease).

  7. I6C4WEr1v5xqfUnm
    I6C4WEr1v5xqfUnm
    BdXPCq6APkZgYOoO
    xvv4d6oyjOFWFYlu

    • Remove all peripherals connecting to the motherboard.

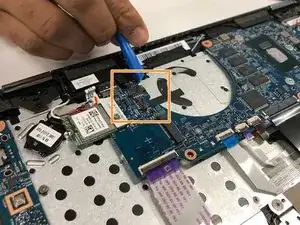

    • Remove the second chip.

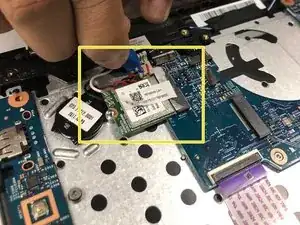

    • Remove the wireless LAN chip.

  8. sV3ZANOYiWq6kQn6

    • Disconnect the three connection wires.

  9. HFsCojWHcSn6OWBu
    HFsCojWHcSn6OWBu
    vcLCDOPtVvXJKXKd

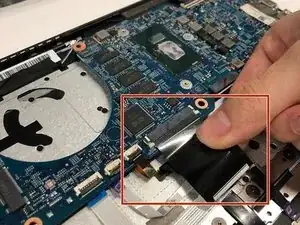

    • Take off the connecting port with black tape.

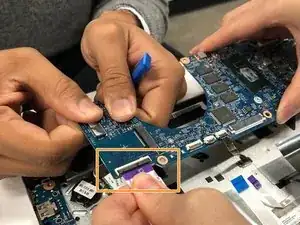

    • Take off the last port with purple tape.

  10. 3KKNQf6DBbpfolRW

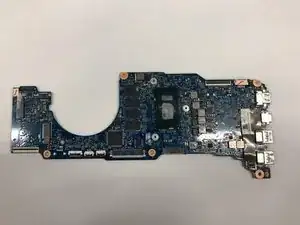

    • Remove the motherboard from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
