Acer Spin 5 N17W2 Screen Assembly Replacement

Geschrieben von: YUJIE WANG
  • Kommentare: 0
Acer Spin 5 N17W2 Screen Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 25 Minuten

Einleitung

This technical guide provides a step-by-step process for replacing the screen assembly of an Acer Spin 5 N17W2 laptop. The Acer Spin 5 N17W2 is a popular convertible laptop that features a touchscreen display, making it a great device for both productivity and entertainment. However, if the screen becomes damaged or stops working, it can be a frustrating issue to deal with. With this guide, you'll be able to replace the screen yourself, saving you time and money compared to taking it to a repair shop. The guide includes detailed instructions, helpful tips, and recommended tools to ensure a successful screen replacement.

  1. cFDcYLZDHDhHIGOb
    cFDcYLZDHDhHIGOb

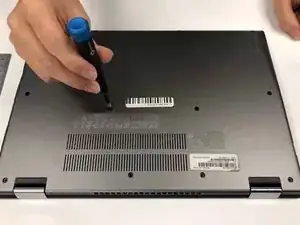

    T4qWvI3iJGiQ1NKi

    • Use the Phillips #1 screwdriver to remove the six 6mm screws.

    • Use Phillips #1 screwdriver to remove six 5mm screws.

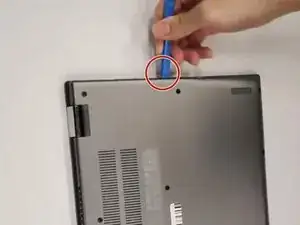

  2. SoXSADSYye5eBBDM

    • Use an opening tool to pry the back cover open.

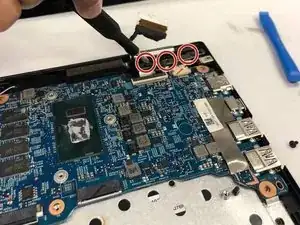

  3. UwoVBJsCTqvUWEnd

    • Use the Phillips #1 screwdriver to remove the three 5mm screws.

    • Use the Phillips #1 screwdriver to remove the three 5mm screws on another side of hinge.

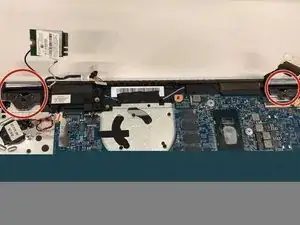

  4. qJQJ44gvnaIgDUL5

    • Disconnect chips from the two end side of hinge.

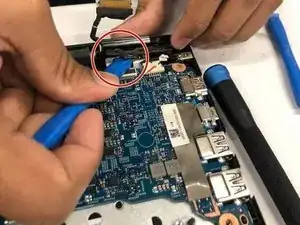

  5. lwfTdH3JNmdh6WPA

    • Use the plastic opening tool to pry the hinge up.

  6. XKeKmiiX4CBFaFZC

    • Remove the wireless LAN chip from the motherboard.

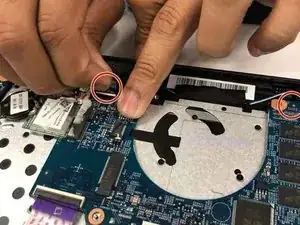

  7. OAZSZ6AOGtatqpF4

    • Detach the sensors on each side of the hinge from the motherboard.

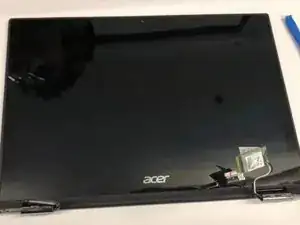

  8. OGyR2vGwFMUKj2Ri

    • Detach the screen assembly from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
