Acer Spin SP513-52N Charging Port Replacement

Geschrieben von: Sara Al-Shumari
  • Kommentare: 0
Acer Spin SP513-52N Charging Port Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

25 - 45 Minuten

Einleitung

If you are having difficulty charging your Acer Spin SP513-52N due to a faulty charging port, there is an easy fix.

This repair is needed because having a faulty charging port is a frequent issue for many consumers. The charging port can sometimes burn out if the fan stops working and the device gets too hot.

Before beginning this repair, turn off the device and unplug the laptop from the charger. It is also a wise to disconnect and/or remove the internal battery.

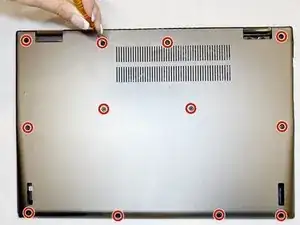

  1. 5PcXJnyP4kOCDaw1

    • Power off your laptop before beginning disassembly and disconnect the device from the charger.

    • Use a Phillips #0 screwdriver to remove twelve 6.0 mm screws from the back panel.

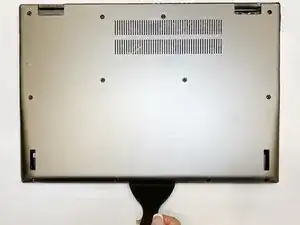

  2. cNkMvBxqngEZY2SG
    cNkMvBxqngEZY2SG

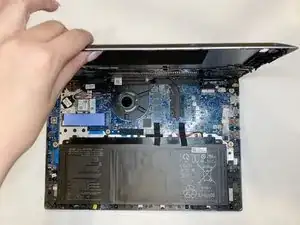

    npVC5vPp6MYCUin3

    • Use an opening tool in the seam of back case and slide it around the perimeter to release the clips securing it to the top case.

    • Remove the back case to reveal the internals of the laptop.

  3. 6PE1CEltpESBgIkm
    6PE1CEltpESBgIkm

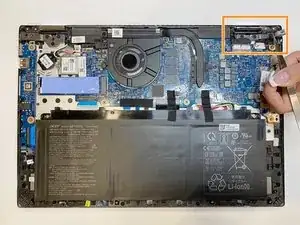

    uUSEPfVrMpcEeajH

    • Before replacing the charging port, unplug the internal battery from the motherboard.

    • Unplug the broken charging port from the motherboard with tweezers.

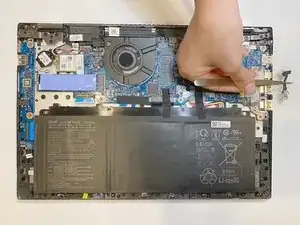

  4. 46KF2hTFAeAZbEFC

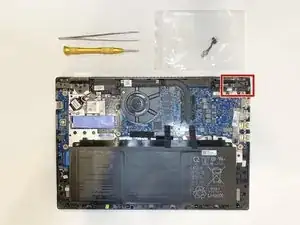

  5. ZTTkKBTHjR5V3Evu
    ZTTkKBTHjR5V3Evu

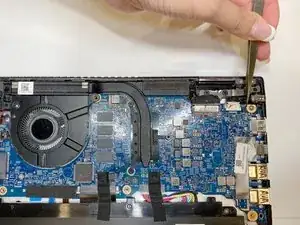

    vYnosVZkKIjA1HWg

    • Use tweezers to insert the new charging port securely.

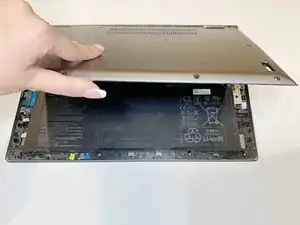

  6. FF4brTJAMNOAwnjq

    • Place the back case onto the laptop and press down around the edges of the perimeter.

    • You should hear the clips snap together.

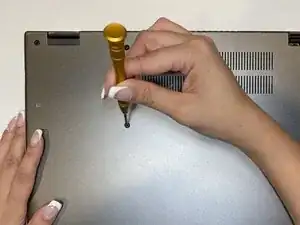

  7. E5NcWwPFe32he5LE

    • Use a Phillips #0 screwdriver to fasten the twelve 6.0 mm screws back into place.

Abschluss

To reassemble your device, follow these instructions in reverse order. Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%). Take your e-waste to an R2 or e-Stewards certified recycler.
