Acer Swift 3 2022 Bottom Cover Replacement

Geschrieben von: Kristen Gismondi
  • Kommentare: 0
Acer Swift 3 2022 Bottom Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. U6pFcVvydOOIY5nA

    • Be sure to power off the laptop before starting.

    • Flip the device over so the bottom panel is facing up.

  2. TFBXJ1e1DKKTqSXM
    TFBXJ1e1DKKTqSXM
    RkAMOyJCquMjZk6I

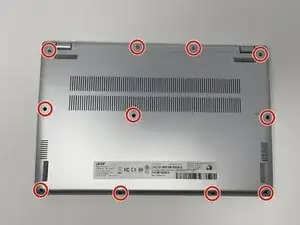

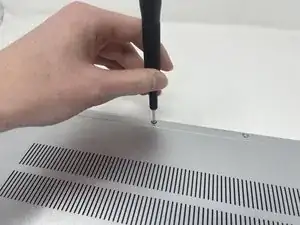

    • Remove the eleven 5 mm screws from the back of the device using a TR6 Torx screwdriver.

  3. tDWEsqN2Sy6gyImV

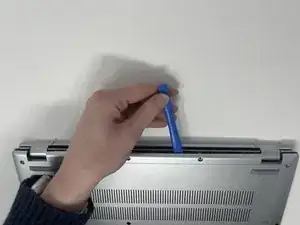

    • Use the iFixit opening tool to pry open the back of the device.

    • Remove the bottom cover from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
