Acer Swift 3 2022 Model Number: N20C12

If your Acer Swift 3 2022 is exhibiting a constant buzzing and humming noise and is overheating, use this guide to remedy those problems. This relatively easy procedure will have your computer as silent as when you first got it and no longer hot to the touch.

Before following this guide, try to remove dust and debris from the fan. This can be accomplished by using an ESD-safe brush or small dust blower and directing it at the fan located in the inner portion of the laptop. This should be completed before following through with the replacement. To view more information view our troubleshooting page.

  1. U6pFcVvydOOIY5nA
    • Be sure to power off the laptop before starting.

    • Flip the device over so the bottom panel is facing up.

  2. TFBXJ1e1DKKTqSXM
    TFBXJ1e1DKKTqSXM
    RkAMOyJCquMjZk6I
    • Remove the eleven 5 mm screws from the back of the device using a TR6 Torx screwdriver.

  3. tDWEsqN2Sy6gyImV
    • Use the iFixit opening tool to pry open the back of the device.

    • Remove the bottom cover from the laptop.

  4. voEGFQGk1XT2IGGG
    voEGFQGk1XT2IGGG
    H1OyWgsxjAR4QdIY
    JUBqoRYyfmY6SEms
    • Peel back the strip of black tape.

  5. BQKZ1nb63RRroTUT
    BQKZ1nb63RRroTUT
    K3rRECZtBUiL6xlY
    • Unplug the group of wires by pulling the white plastic piece towards yourself.

    • Be careful, this piece can be easily damaged.

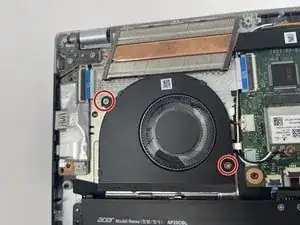

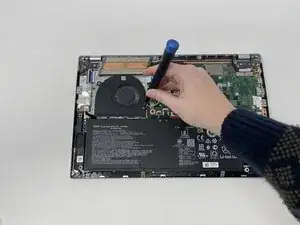

  6. WxfNWIBQjMVManT5
    WxfNWIBQjMVManT5
    PpsOdfNSWr6HaKFl
    • Remove the two 4.5 mm screws from the fan using a Phillips #00 screwdriver.

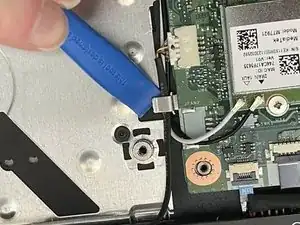

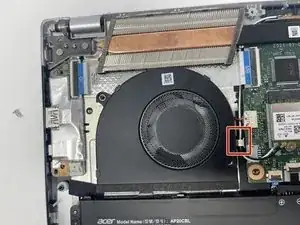

  7. x3NYaJWBAS1AbvTg
    x3NYaJWBAS1AbvTg
    A5mbqm5k32kRplNT
    • Lift the metal clip using the iFixit opening tool to release the wire.

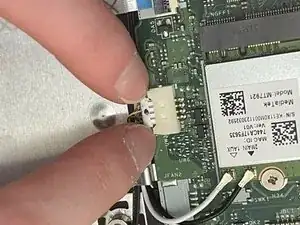

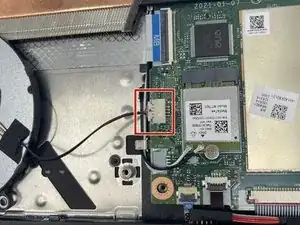

  8. PtfJZ1M2ckrnXkiW
    PtfJZ1M2ckrnXkiW
    IGTAqQ3MvFqeHrjS
    cm2AvqXgYIp4DfxP
    • Unplug the wires by pulling gently on the white plastic.

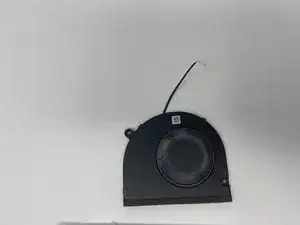

  9. gTTlB2CugCEvZ4TN
    • Remove fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
