Acer TravelMate P653-V-6882 LCD Module Replacement

Geschrieben von: Daniel Popovic
  • Kommentare: 0
Acer TravelMate P653-V-6882 LCD Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

29

Zeitaufwand

30 Minuten

Einleitung

Dropping your laptop, on multiple occasions, increases the chance of the display to stop functioning. If you’re facing this issue and your TravelMate’s display does not light up after troubleshooting, the display may likely be damaged. This means that you will need to replace the LCD module.

Here is a guide on how to replace the Acer TravelMate P653-V-6882's LCD module. It is important to know that when you are replacing the LCD module, you must do a complete teardown of the device.

  1. LRlKCWJR5jLPU1rm
    LRlKCWJR5jLPU1rm
    vQdk22nlsyOVpg11

    • Turn the computer over so the base is facing up.

    • Slide the battery lock to unlock position.

  2. aCVFOFemWMbqEYcx

    • Slide the battery release latch to the right.

    • The battery pack will pop out.

  3. wQto2QuPdWLWMNYI

    • Lift the battery up.

    • Pull out the battery.

  4. AkGclVqhFZmn1OqX

    • Slide the ODD module latch down.

    • The ODD module will pop out.

  5. xi1e3mykOwPUGJre

    • Remove the ODD module.

  6. wdfKvqWYhCoWcKkn

    • Remove the five 7mm Phillips #1 screws.

  7. kIuLHwsRCp1NZOSJ

    • Use the opening tool to separate base door from the bottom of the laptop.

    • Be careful not to bend or crack the plastic back cover.

  8. EKyUHNkGYYT3Vqfy
    EKyUHNkGYYT3Vqfy
    aDkSjG4oaKaCYKKf

    • Gently pry open the base door by pushing up.

    • Pull out the base door.

    • Be careful not to bend or crack the plastic back cover.

  9. sTHNQSGkWt3SEeok

    • Remove the two 7mm Phillips #1 screws.

  10. kvIYZQxYYQmNagO4

    • Flip the laptop so that the underside is now facing the bottom.

    • Open the LCD panel.

    • Use the flat end of a spudger to push in the six latches.

    • Be careful not to bend or crack the keyboard.

  11. VtGmhGF6xhmgVOTY

    • When the latches are pushed in, the keyboard will pop out.

    • Gently pry up the keyboard.

    • Be careful not to bend or crack the keyboard.

  12. tRaP5bIYAPRRhQPw

    • Slide the keyboard forward to access the keyboard cable.

    • Flip the connector latch up to open it.

    • Pull out the keyboard cable gently.

    • Be careful not to damage the connector.

  13. G3JgZesehMYVEHKu
    G3JgZesehMYVEHKu
    RTWrpAE2aaKdsmcv
    Lm5NkFBs4UpBx6dV

    • Turn the computer over, open the LCD panel, and find the smart card cable connector.

    • Open the smart card cable connector latch.

    • Disconnect the cable.

    • Be careful not to damage the connector.

  14. 1LG5bEMUDGRKQBrI
    1LG5bEMUDGRKQBrI
    nOOgf1nEF5n2QYXQ
    sGbT4KsdPZGmpaRq

    • Find the power button launch board cable connector.

    • Open the power button launch board cable connector latch.

    • Disconnect the cable.

    • Be careful not to damage the connector.

  15. HogS3XELcaGohdGA
    HogS3XELcaGohdGA
    XCseyQkKnQmKPPUy
    qRbx1ZqdFQlskDJP

    • Find the touchpad and fingerprint board cable connector.

    • Open the touchpad and fingerprint board cable connector’s latches.

    • Disconnect the cables.

    • Be careful not to damage the connector.

  16. JcaTBqBVCihKq2EG

    • Using the #1 Phillips screwdriver, remove the two screws.

  17. 1QnTYhRAs1D4GJ6t

    • Flip the laptop over so that the underside is facing up.

    • Remove the twelve 7mm Phillips #1 screws.

    • Remove the five 3mm Phillips #1 screws.

    • Disconnect the cables connecting to the WLAN module.

  18. rMSOyRueZd1TBEUZ
    rMSOyRueZd1TBEUZ
    RGlmZEmG6nGTJCuN
    lRnEYfFKqVZx33iJ

    • Flip the laptop so that the underside is now facing the bottom.

    • Open the LCD panel.

    • Locate the small gaps between the upper cover and lower case on the left and right side of the laptop.

    • Insert the opening tool into each gap to separate the one from the other.

    • Once the upper cover is separated, lift it from the lower case.

    • Be careful not to damage the upper and lower case while removing.

  19. clnE2blusadiTaed
    clnE2blusadiTaed
    CqXZsd2K6KFsmLYd
    iayONl3QkOv2KDDH

    • Detach the transparent tape securing the LCD cable.

    • Disconnect the LCD cable from the mainboard.

    • Be careful not to damage the LCD cable connector.

  20. ZnAaWHUCSmMGy5SB
    ZnAaWHUCSmMGy5SB
    VI6vMeGusXTCWUtt
    CcWlCoOOlxtgFFuD

    • Detach the black tape covering the microphone cable.

    • Disconnect the microphone cable from the mainboard.

  21. fyTJKwLjvOiTtYFK
    fyTJKwLjvOiTtYFK
    SyoLE3MFpBjQTSrM
    iQdJaASGTQQrMGtP

    • Open the USB board cable's connector latches.

    • Disconnect the cables.

    • Be careful not to damage the connectors.

  22. KtFibCZFidaX4XJd
    KtFibCZFidaX4XJd
    3um3wlWDTXfQrjOJ
    LxLIEIRHFQopFqks

    • Disconnect the left speaker cable from the mainboard.

  23. YGNLOhvdaFTdDOww

    • Remove the one 7mm Phillips #1 screw.

  24. 2RrE52YEPTsEvIBL
    2RrE52YEPTsEvIBL
    IjwORJWIA2eRONfC

    • Lift the mainboard at an angle and gently turn it on its side.

    • Disconnect the LAN cable from the mainboard.

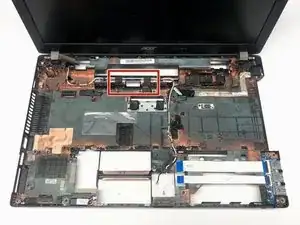

  25. pmoFtQ2ZvK4RH5fO
    pmoFtQ2ZvK4RH5fO
    qZGAURXOUAbZEGsS
    3ZoHgfIQsiVTJwGW

    • Carefully remove the two pieces of black tape securing the antenna cables to the lower case using tweezers.

  26. dNUNBVEo5wnU55u2

    • Release the white antenna cable from its top side latches.

    • Be careful not to damage the cable.

  27. ASpQrUZZklSfOL1W

    • Release the black antenna cable from its top side latches.

    • Be careful not to damage the cable.

  28. 5vXNcYPklZyDBaQl

    • Remove the two 7mm Phillips #1 screws.

    • Make sure to hold onto the LCD module when removing the screws as the display may fall back.

  29. JnpVOlgPtrunY6cC

    • Carefully remove the LCD module from the lower case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
