Acer TravelMate P653-V-6882 RAM Replacement

Geschrieben von: Basel Kandil
  • Kommentare: 0

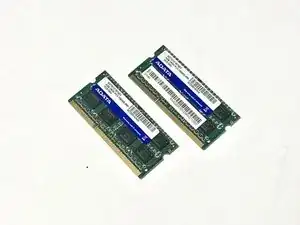

Acer TravelMate P653-V-6882 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

Sometimes the RAM in a device will slow down over time. If your Acer TravelMate P653-V-6882 is being exceptionally slow, you may need to replace the RAM. This will help your device function better and increase its ability to multi task.

Ensure that the device is fully powered off before following the steps below.

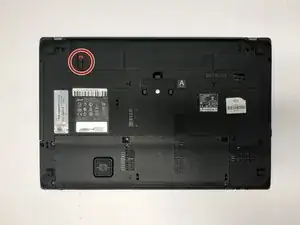

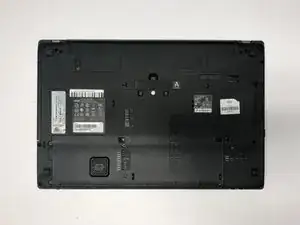

  1. LRlKCWJR5jLPU1rm
    LRlKCWJR5jLPU1rm
    vQdk22nlsyOVpg11

    • Turn the computer over so the base is facing up.

    • Slide the battery lock to unlock position.

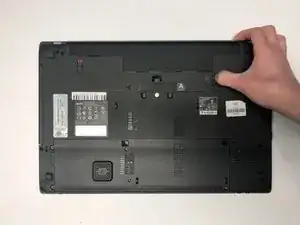

  2. aCVFOFemWMbqEYcx

    • Slide the battery release latch to the right.

    • The battery pack will pop out.

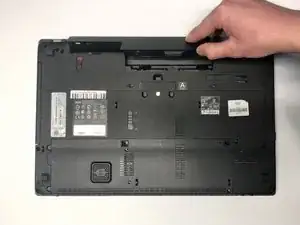

  3. wQto2QuPdWLWMNYI

    • Lift the battery up.

    • Pull out the battery.

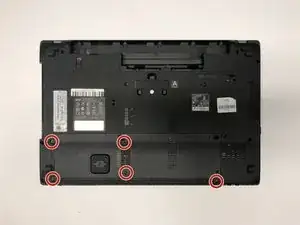

  4. wdfKvqWYhCoWcKkn

    • Remove the five 7mm Phillips #1 screws.

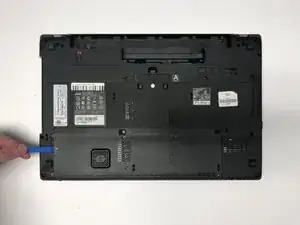

  5. kIuLHwsRCp1NZOSJ

    • Use the opening tool to separate base door from the bottom of the laptop.

    • Be careful not to bend or crack the plastic back cover.

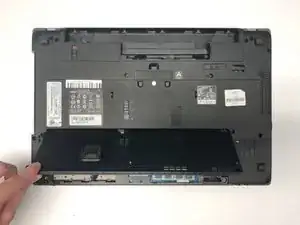

  6. EKyUHNkGYYT3Vqfy
    EKyUHNkGYYT3Vqfy
    aDkSjG4oaKaCYKKf

    • Gently pry open the base door by pushing up.

    • Pull out the base door.

    • Be careful not to bend or crack the plastic back cover.

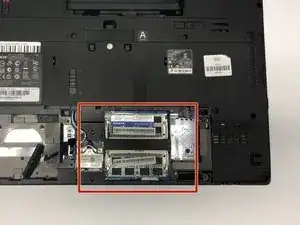

  7. uiKWZGpqHBacjIGM

    • Locate the two RAM sticks on the bottom of the laptop.

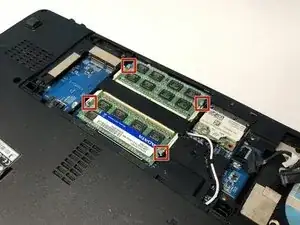

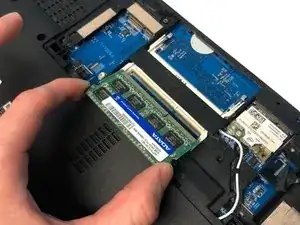

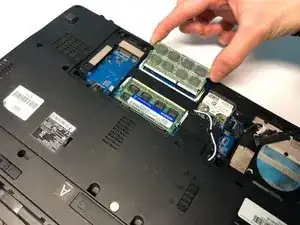

  8. HrYNQZ4BY5vC6HpC
    HrYNQZ4BY5vC6HpC
    2ibB6WMekVCF42Nu
    Zlv1tB2WXeoyJkS3

    • Pinch the two metal pieces holding the RAM sticks in place outwards.

    • Holding the sides of the RAM, slide the RAM sticks out.

    • Be careful not to touch the gold connection pins on the RAM sticks, as this could damage the RAM

Abschluss

To reassemble your device, follow these instructions in reverse order.
