Acer TravelMate TMB115-M-C99B Hard Drive Replacement

Geschrieben von: Tanvi Kharkar
  • Kommentare: 0
Acer TravelMate TMB115-M-C99B Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

7 Minuten

Einleitung

If your laptop is not properly storing or recovering files, use this guide to remove and replace your hard drive.

  1. mDG2eINwFHqZxEii

    • Turn off your laptop before starting.

    • Flip the laptop over so the model stickers face the ceiling.

  2. wLcm5pVBb6uuErn6
    wLcm5pVBb6uuErn6
    qCDGBsryyMBNCtcI
    Qwhkt1WjPX1sRrqc

    • Remove the thirteen 6mm Phillips screws using the #0 screwdriver.

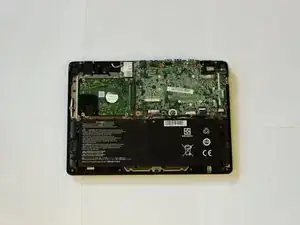

    • Remove the back of the laptop.

  3. PfBkSqWwyDGSuiqS

    • Remove the two 7mm Phillips screws from the battery using the #0 screwdriver.

  4. NSudQNpIr1KGIjPF
    NSudQNpIr1KGIjPF
    CMSX4yGDNrAOt6Ex

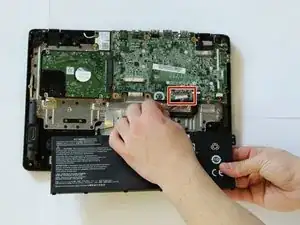

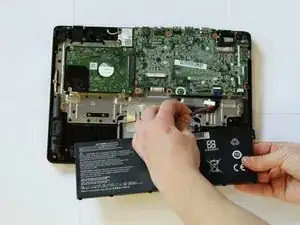

    • Unplug the battery from the motherboard.

  5. Ecfh1xnjteixRQ5y
    Ecfh1xnjteixRQ5y
    hklWKV5sDE3CmKNC
    kocd4vBFZReXhCyX

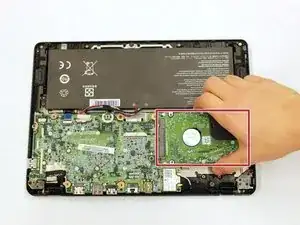

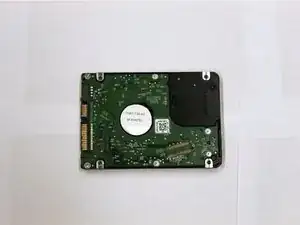

    • Carefully disconnect the hard drive from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
