Acer TravelMate TMB115-M-C99B Screen Replacement

Geschrieben von: Melissa Martinez
  • Kommentare: 0
Acer TravelMate TMB115-M-C99B Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

If your laptop screen is consistently freezing or completely unresponsive, use this guide to remove and replace the screen.

  1. mDG2eINwFHqZxEii

    • Turn off your laptop before starting.

    • Flip the laptop over so the model stickers face the ceiling.

  2. wLcm5pVBb6uuErn6
    wLcm5pVBb6uuErn6
    qCDGBsryyMBNCtcI
    Qwhkt1WjPX1sRrqc

    • Remove the thirteen 6mm Phillips screws using the #0 screwdriver.

    • Remove the back of the laptop.

  3. PfBkSqWwyDGSuiqS

    • Remove the two 7mm Phillips screws from the battery using the #0 screwdriver.

  4. NSudQNpIr1KGIjPF
    NSudQNpIr1KGIjPF
    CMSX4yGDNrAOt6Ex

    • Unplug the battery from the motherboard.

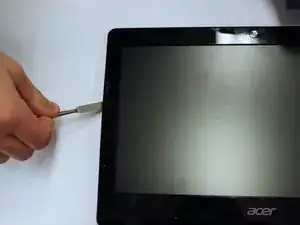

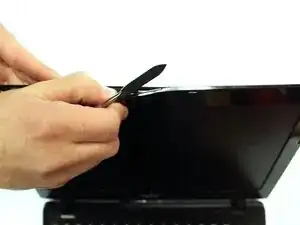

  5. 66ZT1hlLiSuDXstX
    66ZT1hlLiSuDXstX
    srwDsmnqoob5LbRL

    • Use the metal spudger to pry open the front plastic cover of the screen.

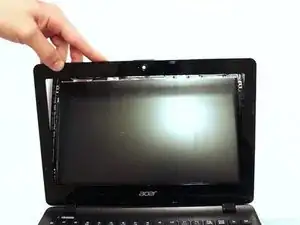

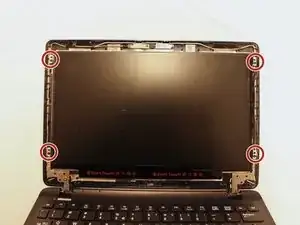

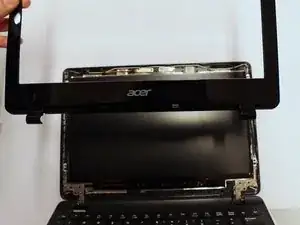

  6. us22tNe6cdaWLFow
    us22tNe6cdaWLFow
    FwsGsQNrPCQjRK5Q
    YxOTdZEdwVfqKIhT

    • Take off the front plastic cover then remove four 6mm Phillips screws using the #0 screwdriver.

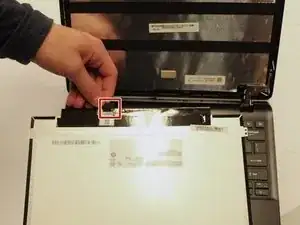

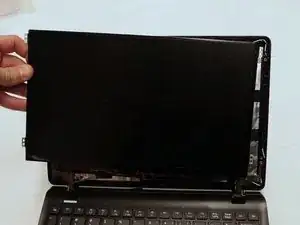

  7. vHchAQaScMOcJVct
    vHchAQaScMOcJVct
    endYxik4WEfYTJmV

    • Flip the screen and disconnect the port.

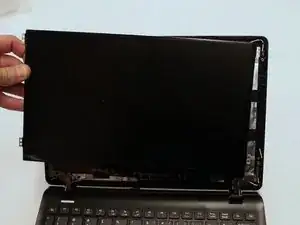

  8. C6HLhXUWCPxfyWLO

    • Remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
