Acer X191 monitor Back Cover Replacement

Geschrieben von: Sam
  • Kommentare: 0
Acer X191 monitor Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Learn how to remove the Acer X191 back cover, to replace it, or get the the components inside.

  1. dr4IdL4rBxuOLdku
    dr4IdL4rBxuOLdku
    baHHjgdK6MgMHX5Y

    • Lay the monitor on a flat surface, facedown.

    • Use a #1 Phillips screwdriver to remove the 4x 10.2mm screws securing the stand to the back panel.

    • Remove the stand from the back panel by pulling it up.

  2. BOG5prMWjTFTSGuP

    • Remove the 2x 9.8mm Phillips #1 screws securing the back cover to the monitor.

  3. gYxFLYnlrsFTBvrS
    gYxFLYnlrsFTBvrS

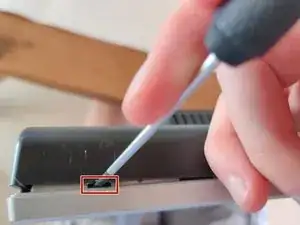

    Y5mioWatAGpoO3cb

    • Work your way around the monitor, putting the flathead screwdriver into the space between the front and back covers, and prying up.

    • Twisting the screwdriver can help, but you can easily mess up the plastic without getting anything out of it by doing so. Be cautious.

    • Ideally you want to pry at the locations that have the little gaps, which are locking mechanisms.

    • You should hear a poping sound and the back cover should lift a little if you are prying at the right locations.

  4. aGK1iO41lX4bvCcU
    aGK1iO41lX4bvCcU
    STIIVDTWYSoDgHNG
    EXUKsaHXnGX4MVG4

    • I've highlighted the locations of the locking mechanisms for the back cover, try prying in these locations for the best results.

    • Right side of the monitor.

    • Top of the monitor.

    • Left side of the monitor.

  5. 3ECuReFVT1UmV5Mq

    • On the bottom side, be careful not to pry on the monitor buttons.

    • Bottom of the monitor locking mechanism locations.

  6. QREaKT6nTjF4Uqxw
    QREaKT6nTjF4Uqxw
    fNNoPh2LBijTLU3l

    • The monitor back cover will then pull right off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
