Einleitung

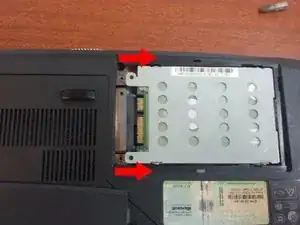

  1. GBGIIsaPMGFEchip
    GBGIIsaPMGFEchip
    irXhAdRw2TsuwgnG
    • The hard drive is inside this compartment.

    • To remove the hard drive you have to remove the screws and pull them back to remove it.

  2. SxGfodL3vU5i6SsC
    SxGfodL3vU5i6SsC
    OPYDVSF1SaS2SWbq
    • To remove the components first we have to remove the lid.

    • To remove the lid we have to unscrew the following screws that are marked in the first image

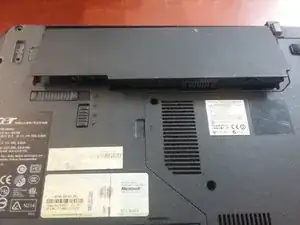

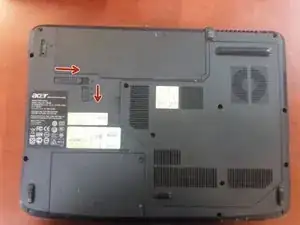

  3. BQwpDB4ZPCheFMXq
    BQwpDB4ZPCheFMXq
    lH2UjoCSonZ5nQQ1
    • To remove the battery we have to remove the safe, and pull the other lever and it will go out alone.

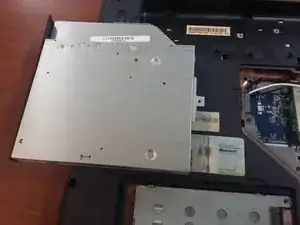

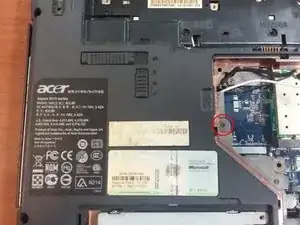

  4. 2UT1aIcUn4H4oSPx
    2UT1aIcUn4H4oSPx
    IYkoiSYe4d1JPKOI
    • To remove the drive we have to unscrew the screw is in the compartment where the motherboard.

    • In the image one screw is marked to be removed.

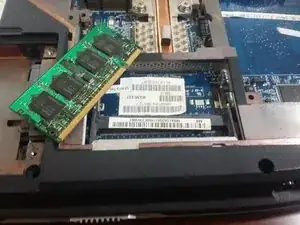

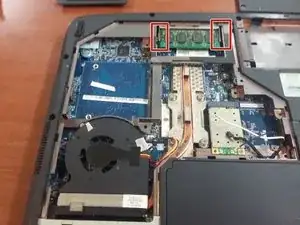

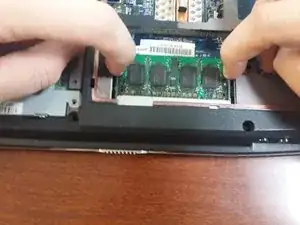

  5. kfSFt3FTGkgOAxts
    kfSFt3FTGkgOAxts
    yPYwwlrqTJ44wpka
    PBgTymMlEDt4Ed5t
    • To be able to remove RAM, next to it there are two palanquillas (Image1)

    • In order to remove it, we have to press the two levers out simultaneously (Image2)

    • To take it out of you must be diagonal because if you can not break or do bad things.

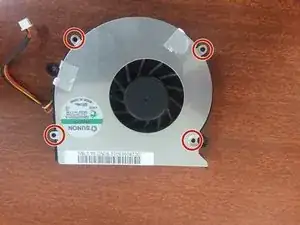

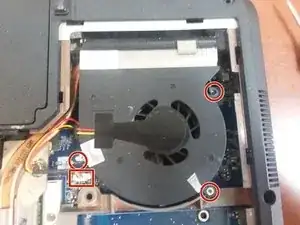

  6. CJ2UnHTIVsamVHvp
    CJ2UnHTIVsamVHvp
    iKxhwgeZoaSHM62G
    iMLtqaXvuFp2kJpt
    • To remove the fan, we have to unscrew it and disconnect it from the plate.

    • To remove the fan, we have to unscrew it and disconnect it from the plate. (In image 1 this is marked where the screws and the connector are)

    • Then to open it we have to remove the screws behind them (in Image 2 they are marked) After it is open, we can use a compressed air pot to clean it.

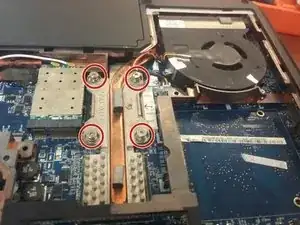

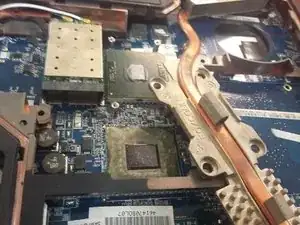

  7. ijUKGWBPs2xsIUkY
    ijUKGWBPs2xsIUkY
    jrQHLFo3MJehJUHU
    • As he pulled the fan, he had to break the dissipator.

    • Per treure the dissipator tenim to download the cargols that are marked to the Imatge 1

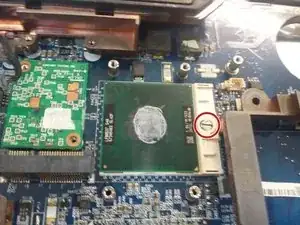

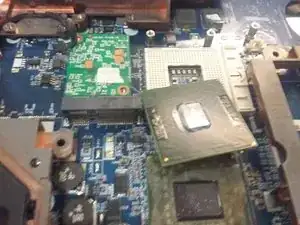

  8. qfGbC4joNiJPP5Bd
    qfGbC4joNiJPP5Bd
    dCO3CAMS6r2HpGjc
    • Per treure the processador em to have molta cura, ja what if not the treus bé is pot trencar els pins.

    • Per to be able to tread the processador necessitarem a tornavís, i tindrem that descargolar aquest cargol. (imatge 1)

    • Quan ja estigui afluixat tenim that treure the processador cap a dalt perquè is not trenqui no pin

  9. TH5SiNJcaUYG6kNH
    TH5SiNJcaUYG6kNH
    k1VcwO3ePAxAQKSS

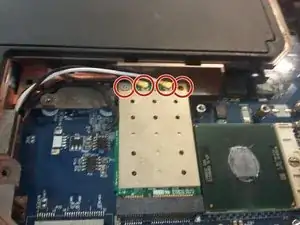

    • To remove the Wi-Fi card, the first thing we need to remove is the two cables and the two screws that are marked in Image 1

    • When we have already removed both wires and screws, the card will go out alone, we have to keep in mind and take it out diagonally so it does not break.

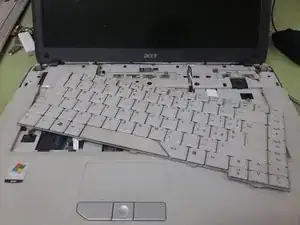

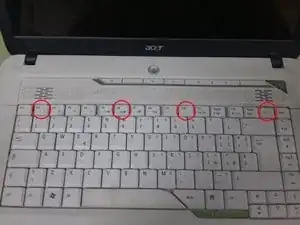

  10. 2pkOIVEfGxIR2rnD
    2pkOIVEfGxIR2rnD
    qfC1u2pbPojP4duk
    • To remove the keyboard, we have to press four tabs that are marked in Image 1

    • in order to press the tabs, we will use a flat-level screwdriver or lever.

Abschluss

To Reassemble your device, follow these instructions in reverse order.
