Einleitung

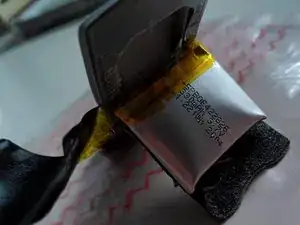

After about a year of intensive usage, I noticed the battery was swollen. I don't know whether it was caused by lying on it, storing it where it was bumped by other stuff, or just bad luck, but I figured this was repairable.
Werkzeuge
Ersatzteile
-
-
Just like when charging the device, take out the Bluetooth module from the headband and disconnect it from the speakers.
-
-
-

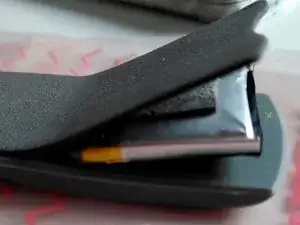

The back cover is glued in place. It's not a very tough glue, so the cover may have already shifted a bit from its place, and it shouldn't be too hard to remove.
-
-
-

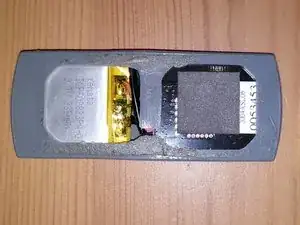

The module has two compartments, one for the battery and one for the circuit board. Remove both from their rubbery shell.
-
-
-
You may be able to cleanly remove the two wires from the beige clip, but I wasn't confident I would be able to reconnect them, so I cut them near the battery, so I had plenty of wire to attach the new battery to.
-
-
-
The original battery is a prismatic LiPo 3.7 V 330mAh with dimensions 4x28x26 mm
-
I wasn't able to find one of that exact size, but since it fit even in its swollen state, I figured I could go for a thicker 6x28x23 mm battery
-
-
-
Solder or twist together the old and new battery wires
-
Cover the exposed parts with electrical tape
-
-
-
You can test your repairs without replacing everything into its protective cover first. This can save you some frustration when it doesn't work on the first try, but requires a bit more caution when handling the circuit board.
-
Long press the central button on the circuit board to turn it on. Does the red LED blink on?
-
Does it connect to your device?
-
Attach the speakers and try to play some audio
-
Attach a charger. Does the charging light come on?
-
-
-
You can look at the opening for the USB port to check the orientation (this is one place where USB-C would be a disadvantage)
-
It might take some patience to guide the wires through the opening between the two compartments. In my case it was easier to turn the battery sideways.
-
-
-
In my case, it remained sticky enough to not require new glue, even after several disassemblies.
-
