AcuRite 02032 Wind Cup Assembly Replacement

Geschrieben von: Ben Kegel
  • Kommentare: 2
AcuRite 02032 Wind Cup Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

  1. ZNsNxWNdq2HbfSGU
    ZNsNxWNdq2HbfSGU
    vD6w2suZwYLiK5Xb
    TOoRScvG6KuJ452O

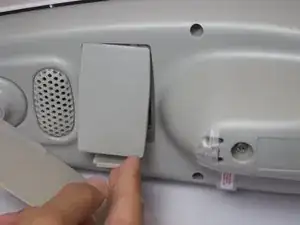

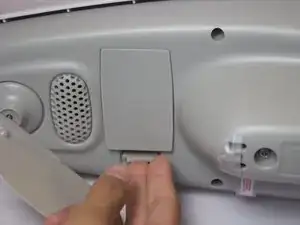

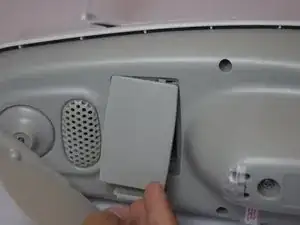

    • Remove the battery compartment lid by lifting upward.

  2. aZgwxARfltbU1Wi5

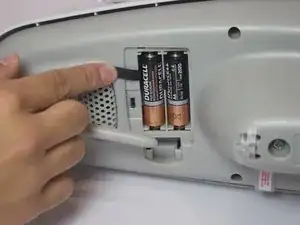

    • Pull the ribbon to eject the 2 X AA alkaline batteries.

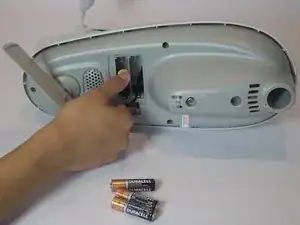

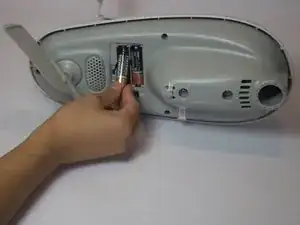

  3. kMdJwaJucelbVtCZ
    kMdJwaJucelbVtCZ
    WQCjbNKgIIUdYKBV
    3wdIOHru2uJ2feMX

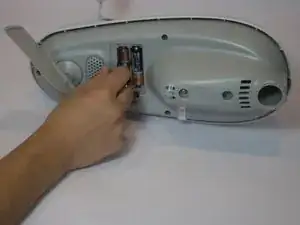

    • Once the batteries are removed, it is safe to proceed.

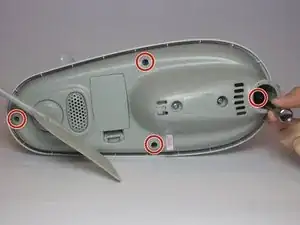

  4. yUEWAYaGA6wbRZ2d

    • Remove the four 0.8cm screws that attach the bottom panel to the device

    • An extended driver is needed to reach 3 of these screws. If you are using the 64 - bit driver kit you can extend the driver by inserting the driver PH1, (Phillips size 1) into the size 4 hexagonal adapter.

  5. OB4JBpvydr3frJef
    OB4JBpvydr3frJef
    OUIHndUIQutdsvoF

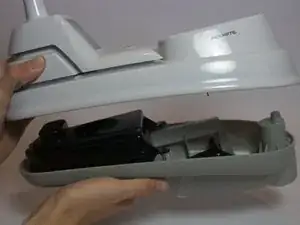

    • Gently lift the top section of the weather center away from the base. With all the screws removed it should lift off easily.

  6. a3ZNSnGANqGubDR4

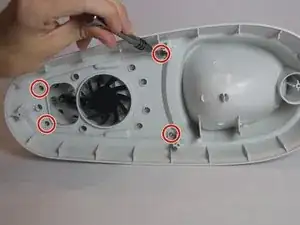

    • Remove the four 0.8cm screws inside the case located near the fan using the J1 screw bit.

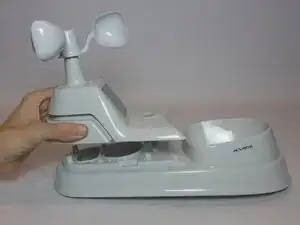

  7. RRqeBUMOJwkwHIWh
    RRqeBUMOJwkwHIWh
    VRu1tRyAKqVciEAm

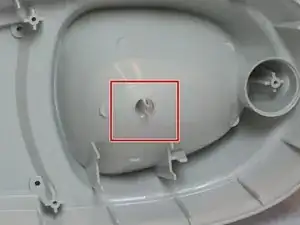

    • With all four screws removed, the wind cup assembly should lift straight up off the middle section.

    • Set down the bottom half of the weather center careful. There are two small pegs that will break with the slightest amount of pressure.

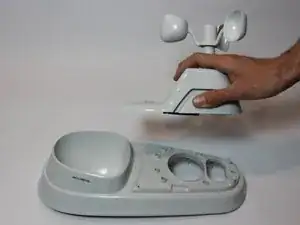

  8. LrouMIGPOclZUcc1

    • Replace the old wind cup assembly with the new assembly that was purchased.

Abschluss

To reassemble your device, follow these instructions in reverse order.
