Afterglow Wireless PS3 Controller Button Replacement

Geschrieben von: Aj Coello
  • Kommentare: 1
Afterglow Wireless PS3 Controller Button Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

This guide will show the process of removing the back plate, vibration motors, and motherboard to access the buttons on the front of the controller.

  1. SsTrT1hGcGJiwjUy
    SsTrT1hGcGJiwjUy
    lQ3a3v31fniKHPcg

    • Lay the controller face down on a flat surface and remove the seven 9mm Phillips #0 screws on the back of the controller.

    • Lift up and remove the controller back plate.

    It should be noted that the screws that are just above the vibration wheels, at the thickest part of the handles, are ever so slightly longer than the clearance of the bit when it’s in the driver. This is easy to get around by just using the bit by itself.

    Daniel Anderson -

  2. MSs3YpSPDxnr5IPJ
    MSs3YpSPDxnr5IPJ
    nNAFVcasNtOwp6RO

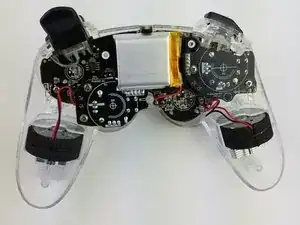

    • Carefully remove the battery by lifting it straight up from its place.

    • Keep in mind that the red and black battery wires are attached to the motherboard. Handle these with care.

  3. 4eyADDQfmNauIGWO

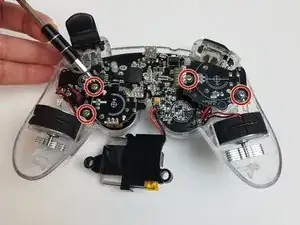

    • Unscrew the four 9mm Phillips #0 screws that are attached to both joy stick control mini-motherboards. There are two screws for each mini-motherboard.

  4. NADAkwKAZbrd3RAr
    NADAkwKAZbrd3RAr
    CYS6BcPMXvHW12NQ

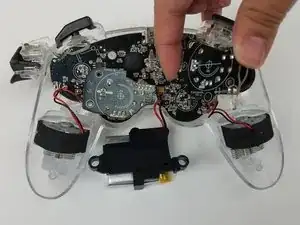

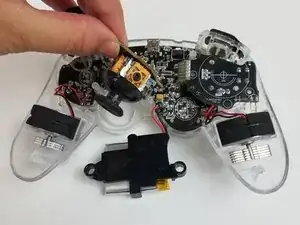

    • Jiggle both joy stick control mini-motherboards out of their holding place.

    • Set aside the mini-motherboards so you can access the main motherboard.

  5. 2ZIT1MveZWREHUJl
    2ZIT1MveZWREHUJl
    xwDhq3uYVQAHxQHH

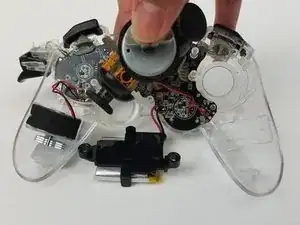

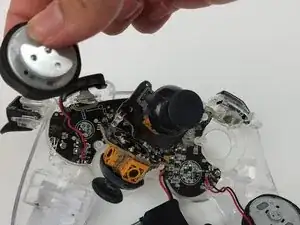

    • Pull both vibration motors straight up from their holding place.

  6. Vsq3HtCmjUyfhvRk
    Vsq3HtCmjUyfhvRk
    eYnRoJX6kEIfN5ia

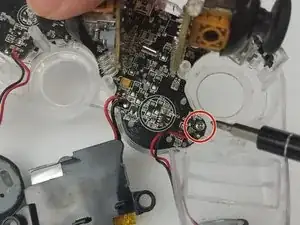

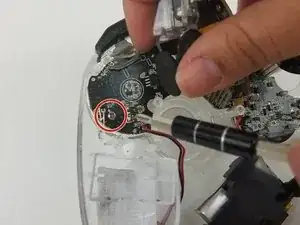

    • Unscrew the two 9mm Phillips #0 screws holding the motherboard to the controller front plate.

  7. RfBpUyqvFsHNkSBM
    RfBpUyqvFsHNkSBM
    LZ1SyBvGa6AIVERM

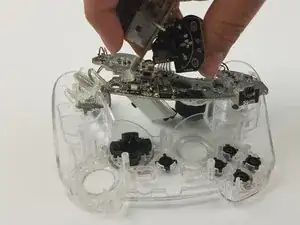

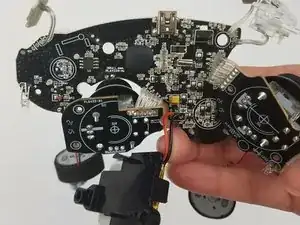

    • Detach the main motherboard fom the front pate by carefully pulling it off.

    • Be careful of the trigger buttons when pulling out the motherboard. The buttons have mini-motherboards secured in place on the front plate. Carefully pull these out.

  8. LvAluUaOwOlnWXuK
    LvAluUaOwOlnWXuK
    DhZXLJQgAm6AlPji
    cchpsnKLj1XtRRNM

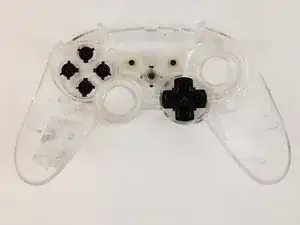

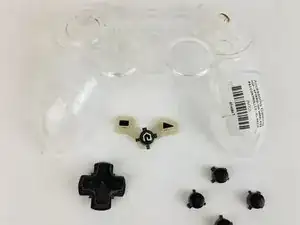

    • Pick up the controller front plate and carefully turn it over so that the buttons left in it will fall out.

    • You may want to flip it while holding it over a container so the buttons do not go bouncing away from your work space.

Abschluss

To reassemble your device, follow these instructions in reverse order.
