Afterglow Wireless PS3 Controller Prerequisite

Geschrieben von: Aj Coello
  • Kommentare: 0
Afterglow Wireless PS3 Controller Prerequisite

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

4 Minuten

Einleitung

Prerequisite guide for moving the battery in a PS3 Wireless Afterglow Controller.

  1. TFyikqxHSUvLPJvQ
    TFyikqxHSUvLPJvQ
    vL3JTYjQItNxvTAU

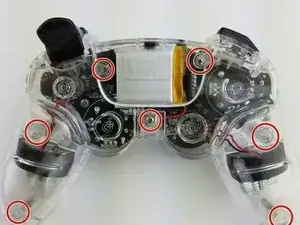

    • Lay the controller face down on a flat surface and remove the seven 9mm Phillips #0 screws on the back of the controller.

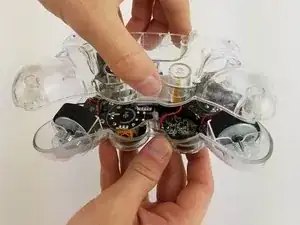

    • Lift up and remove the controller back plate.

  2. JQ6ZTrOGtChqUYWf

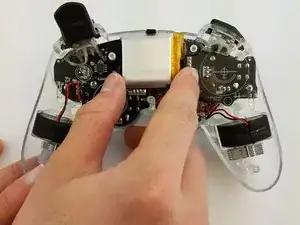

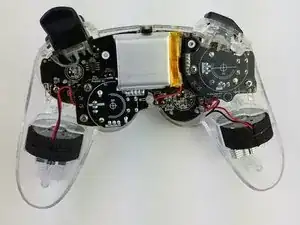

    • Carefully remove the battery by lifting it straight up from its place.

    • Keep in mind that the red and black battery wires are attached to the motherboard. Handle these with care.

Abschluss

To reassemble your device, follow these instructions in reverse order.
