Einleitung
Replacing the trigger button requires the removal of the controller back plate and the careful pulling of the trigger from its housing.
Werkzeuge
-
-
Lay the controller face down on a flat surface and remove the seven 9mm Phillips #0 screws on the back of the controller.
-
Lift up and remove the controller back plate.
-
-
-

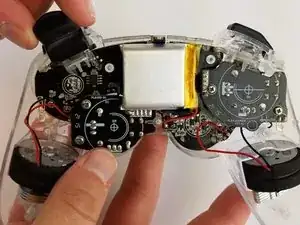

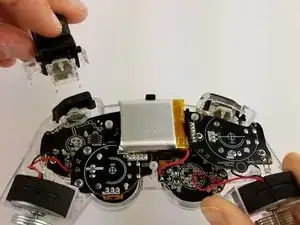

With one hand, hold the controller down and with the other pull up on the lower clear plastic trigger housing to remove it.
-
-
-

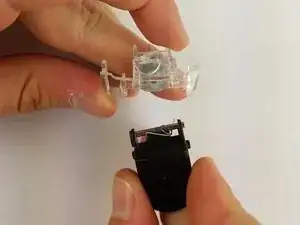

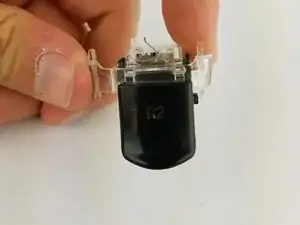

Firmly grip the clear plastic trigger housing with one hand and use your other hand pull the black trigger button from its housing.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
It should be noted that the screws that are just above the vibration wheels, at the thickest part of the handles, are ever so slightly longer than the clearance of the bit when it’s in the driver. This is easy to get around by just using the bit by itself.
