Aiptek DZO-V58N Image Sensor Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

35 - 40 Minuten

Einleitung

The image sensor is the component of the device responsible for sensing the light through the lens and converting it into an electrical signal. The sensor captures a new image 30 times per second in order to create a video. The sensor is a very fragile and sensitive component. Take caution when handling the new image sensor to be installed in the device. Use this guide to replace the image sensor.

Werkzeuge

Schritt 1

Locate the battery compartment on the back of the camera. It is the panel with the plastic ridges for simple removal.
Slide the battery compartment cover down off of the camera body.

Schritt 2

Pry up the battery from the bottom using a finger and remove the batter from the case.

Schritt 3

Remove the lanyard by pulling the grey lace through the black string loop.
Pull black string loop through the silver bracket.

Schritt 4

Use a plastic opening tool to pry off the black control cover.
The face plates are glued, so use force to pry the face plates from the camera body.

Schritt 5

Use a plastic opening tool to pry off the ridged back face plate and the black button.
The face plates are glued, so use force to pry the face plates from the camera body.
The button is loose and should come off with little or no effort.

Schritt 6

Use a plastic opening tool to pry off the silver face plate.
The face plates are glued, so use force to pry the face plates from the camera body.

Schritt 7

Open the USB cover to expose the small machine screw.
Use the Phillips #00 screwdriver to unscrew the six 0.5cm machine case screws (distributed around the camera body).
These small screws are easy to lose. Place the removed screws in an organized container to avoid losing them.

Schritt 8

Pull off the side control panel.

Schritt 9

Flip open the screen by pulling the loose end of the screen away from the case.
Use tweezers to remove the two outside rubber dots to reveal the two 0.5cm machine screws.
Use the #00 Phillips Screwdriver to remove both screws.

Schritt 10

Pull the body apart from the bottom of device just enough to make space to remove the silver plastic strap holder.
Use tweezers to remove the silver plastic strap holder.
Use a plastic opening tool to pry off the lens protector.

Schritt 11

Unscrew the two silver 0.5cm machine screws with the #00 Phillips screwdriver.
Lift off the lens protector housing.

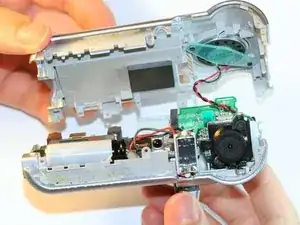

Pull apart the two halves of the camera body.
Do not pull the two halves apart too far because the wires may detach.

Schritt 12

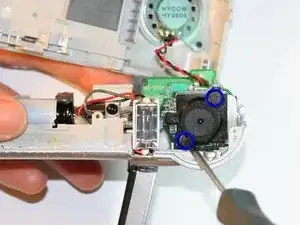

Unscrew both black machine screws holding the lens in place with the #00 Phillips screwdriver.

Schritt 13

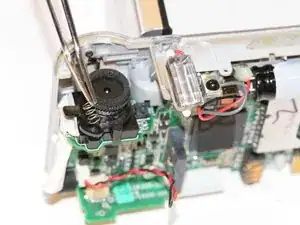

Carefully remove the compressed springs underneath each of the two screws that were removed in the previous step.
Be careful not to lose the springs. The springs are in compression and will launch from the camera if not held onto.

Schritt 14

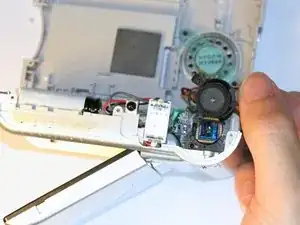

Lift off the lens.

Schritt 15

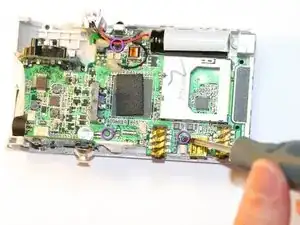

Use the #00 Phillips Screwdriver to unscrew the 3 circuit board screws.

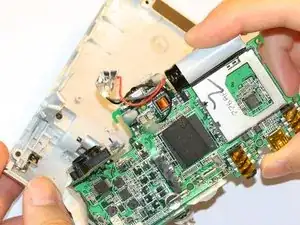

Slightly separate circuit board from plastic case by lifting the circuit board straight out.
