Einleitung

If your lens is cracked or broken, follow these step by step instructions to replace it.

  1. XMI6FE6IwRxBWCrT
    XMI6FE6IwRxBWCrT
    nVJU5XFvvM6eEbIx
    VHPAYEVTh46PoUL3

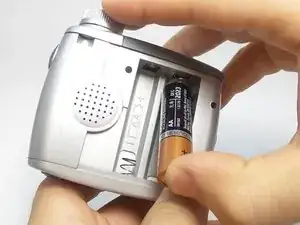

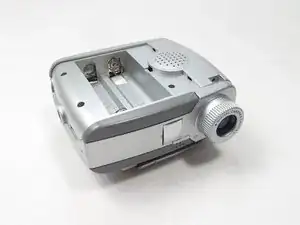

    • Remove the battery cover.

    • Remove the batteries.

  2. 5LKo1QLK5TbNNAbb
    5LKo1QLK5TbNNAbb
    MaHxiADdBmDgt2VB
    LhvwXmCywq3QVilY

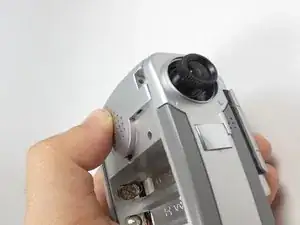

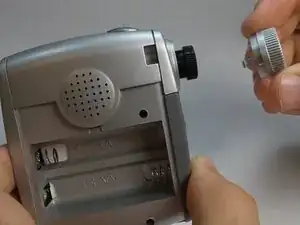

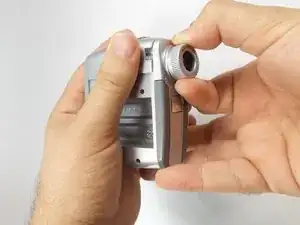

    • Put a finger on the top and bottom of the lens cover and apply light pressure.

    • Pull the lens cover off the device.

    • Be careful not to break the cover. If it doesn't come off easily try turning the cover while pulling.

  3. 2mka5TM6gQSjoXdt
    2mka5TM6gQSjoXdt
    iqMqvSdl3CLFUxmV

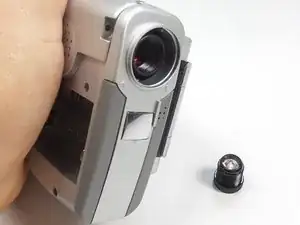

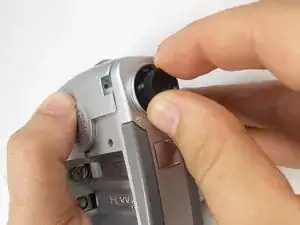

    • Unscrew the lens counter-clockwise until it comes out.

    • Insert your new lens by screwing it back in clockwise.

Abschluss

To reassemble your device, follow these instructions in reverse order.
