The barrel is the orange piece into which you insert the darts.

  1. HWIOPY1uLhul24mY
    HWIOPY1uLhul24mY
    cd5Ae6lZQiymNTVe
    1NcDptcZPHpSf2eU

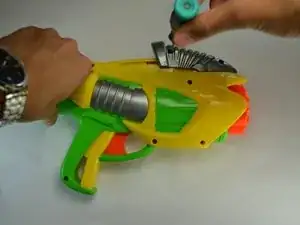

    • Using a screwdriver, remove the two 11.6 mm phillips 00 screws holding the grey slider together.

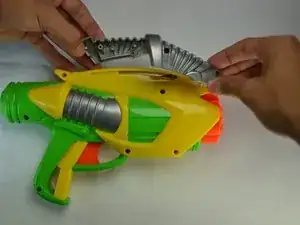

    • Remove grey slider from the main body of the blaster.

  2. eKXbtn4jGAMX1jOC
    eKXbtn4jGAMX1jOC
    INN3unq1jBrjfOpN
    K5eAoQHshZeM45vC

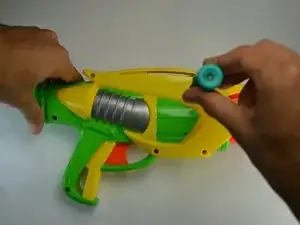

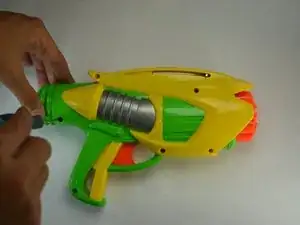

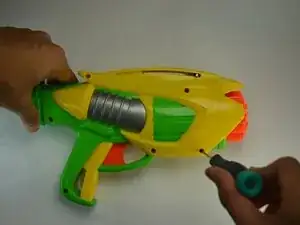

    • Using a screwdriver, remove the six 9 mm phillips 00 screws holding the main body together.

  3. WPROETxFHtcJtS6P
    WPROETxFHtcJtS6P
    EPSwJuMMcJeKtHt4
    D5anJt5xMPwsB2RU

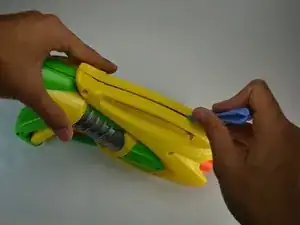

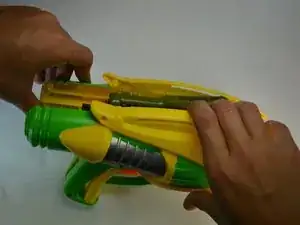

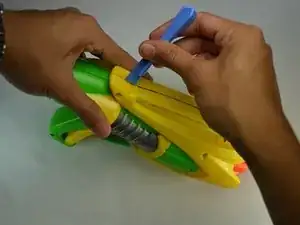

    • Using the plastic opening tools, carefully take apart the main case of the blaster to leave the inside exposed.

  4. mjmNAF2RWZai4cCD
    mjmNAF2RWZai4cCD
    neiRyqmmDRAYvpHg
    graYAVVjH4ERXjFe

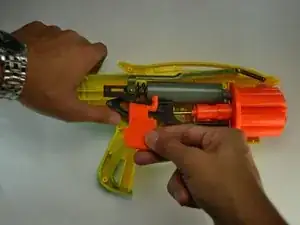

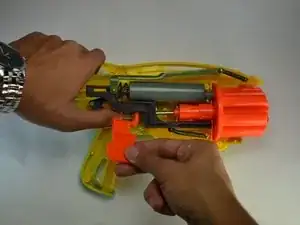

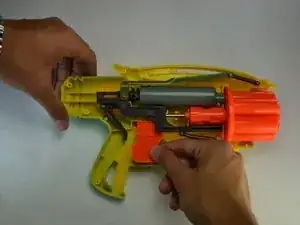

    • Remove the trigger, lifting from the bottom and pulling it out from under the metal pin.

  5. uNERUJ4HkqtBNUBW
    uNERUJ4HkqtBNUBW
    XyCg4ZMxPxsoSn11
    sN52BDxK3DBrtQke

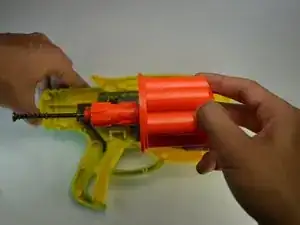

    • Lift the barrel, pulling it out from under the black trigger catch

Abschluss

To reassemble your device, follow these instructions in reverse order.
