Einleitung
The plunger is a plastic cylinder covering the main spring which works in the air-releasing system to shoot the darts. You must be careful not to harm other parts of the blaster while taking out the trigger.
Werkzeuge
-
-

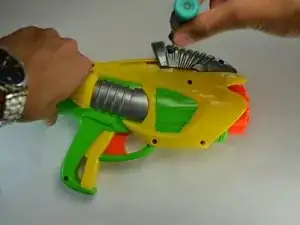

Using a screwdriver, remove the two 11.6 mm phillips 00 screws holding the grey slider together.
-

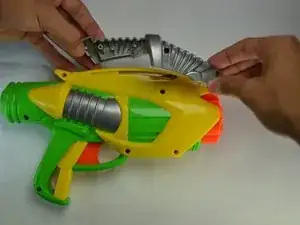

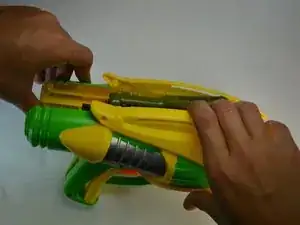

Remove grey slider from the main body of the blaster.
-
-
-

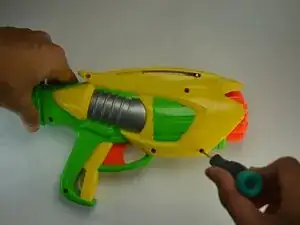

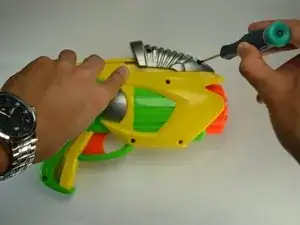

Using a screwdriver, remove the six 9 mm phillips 00 screws holding the main body together.
-
-
-

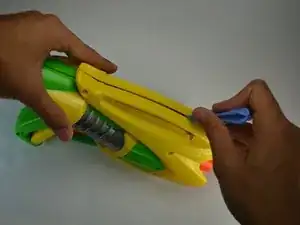

Using the plastic opening tools, carefully take apart the main case of the blaster to leave the inside exposed.
-
-
-

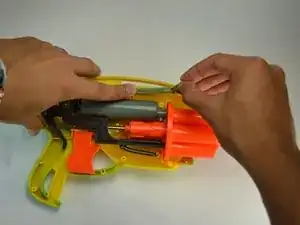

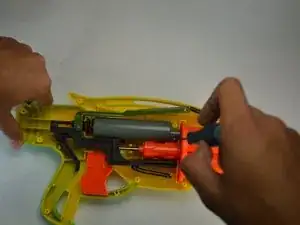

Using a screwdriver, remove the 7.5 mm phillips 00 screw holding the bottom spring to the air system.
-
-
-

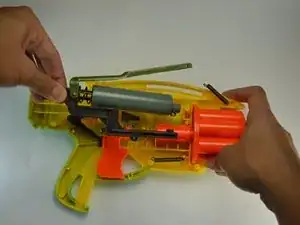

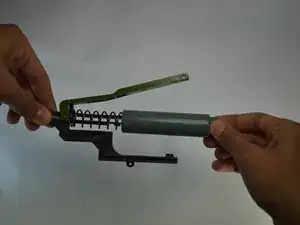

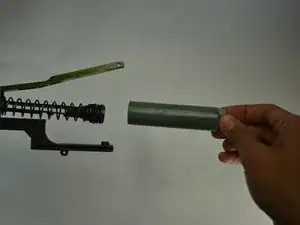

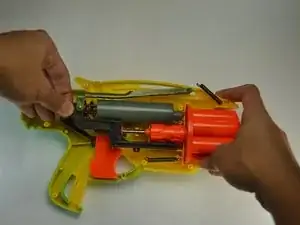

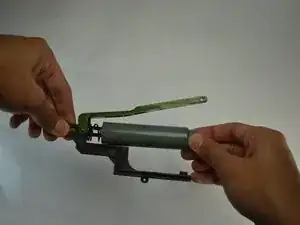

Carefully grab the metal pin keeping the air system and top spring stationary, and slide it outwards. This will release the air system with the plunger completely.
-
-
-

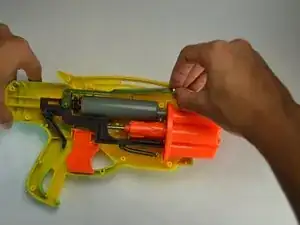

Using a screwdriver, remove the 5.2 mm phillips 00 screw holding the air system to the body of the blaster.
-
To reassemble your device, follow these instructions in reverse order.
