Einleitung
The reload slider spring brings the reload slider back to the front once the blaster is ready to fire.
Werkzeuge
-
-

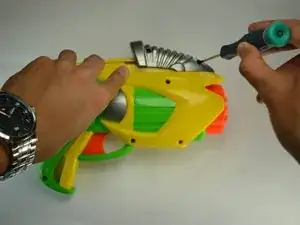

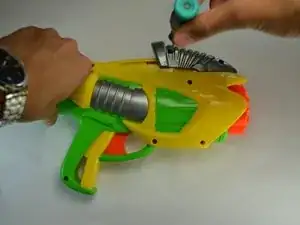

Using a screwdriver, remove the two 11.6 mm phillips 00 screws holding the grey slider together.
-
Remove grey slider from the main body of the blaster.
-
-
-

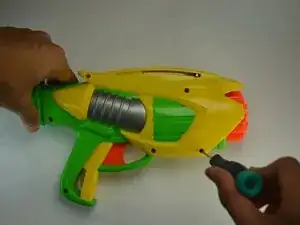

Using a screwdriver, remove the six 9 mm phillips 00 screws holding the main body together.
-
-
-

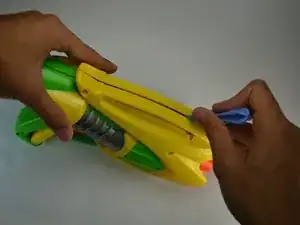

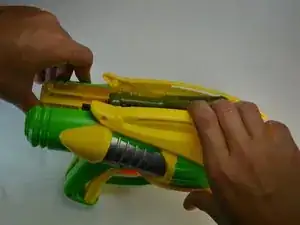

Using the plastic opening tools, carefully take apart the main case of the blaster to leave the inside exposed.
-
-
-

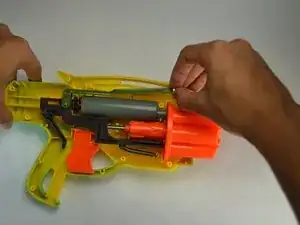

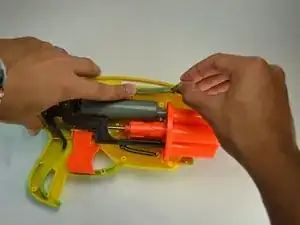

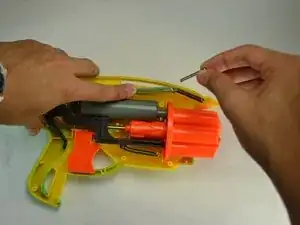

Carefully grab the metal pin keeping the air system and top spring, and slide it outwards. This will release the air system with the plunger completely.
-
-
-

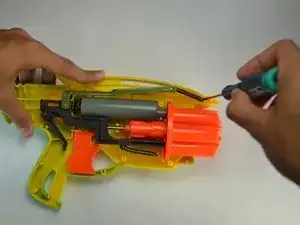

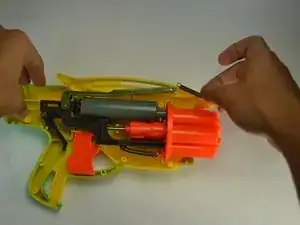

Using a screwdriver, remove the 7.5 mm phillips 00 screw holding the top spring to the reload slider.
-
To reassemble your device, follow these instructions in reverse order.
