Air Hog Smash Bots Front Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

The purpose of this guide is to provide instructions on replacing the front panel and gaining internal access to the controller of the Air Hog Smash Bots.

  1. qOd2JLWCQlQBQVKB
    qOd2JLWCQlQBQVKB
    LKsK5PQfeAciLyJD

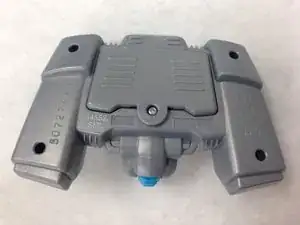

    • Take out your controller and access to the back of the controller.

  2. hGDaWCDUprXulDon

    • Remove the screw on the battery lid. Using the Hex 4 socket and PH #0 bit, remove the 8 mm screw.

  3. T3WoJ1H1XPfMhjxK

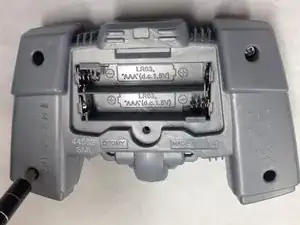

    • Remove the 2 AAA batteries.

  4. EOPqljLgI2anHAPA
    EOPqljLgI2anHAPA
    XrnYprG5hMEIURPB

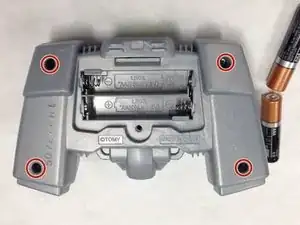

    • Using the Hex 4 socket and PH #0 bit, remove the four 8 mm screws on the panel.

  5. UGRrOk2SKdmaAMl2
    UGRrOk2SKdmaAMl2
    u4pLRliPtP3vNRMm

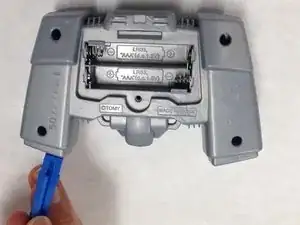

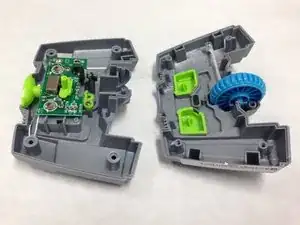

    • Use the plastic opening tool to disconnect the front and back parts of the panel.

    • Some of the internal components may be displaced when opening the controller.

Abschluss

To reassemble your device, follow these instructions in reverse order.
