Airpress LM 50-350 Oil Replacement

Geschrieben von: knipwim
  • Kommentare: 0
Airpress LM 50-350 Oil Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

15 - 20 Minuten

Einleitung

The oil required for cooling and lubrication of the compressor parts needs to be regularly checked. Dirty oil leads to performance loss and even damage.

The system takes about 0.2 liter (6.5 oz) of compressor oil.

  1. 5FxfW6x4KDtsqawV

    • To ease the draining process, run the compressor for a few minutes and warm up the oil a bit.

    • Make sure to unplug the compressor at this point.

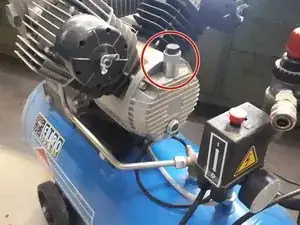

    • Unscrew the filler cap to allow air into the reservoir.

  2. FZCFQa6LxXNhR2MX
    FZCFQa6LxXNhR2MX
    vHTXOiacXGtR5MRi

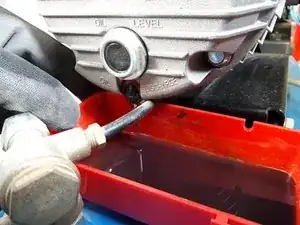

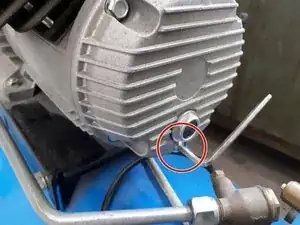

    • Using the 5mm hex key, unscrew the drainage plug.

    • With the plug removed, let the reservoir drain until no more oil comes out.

  3. fiM4OKpPUGOc5EBS
    fiM4OKpPUGOc5EBS
    m2BYZuVPWZPIELtq

    • Screw the drainage plug back on.

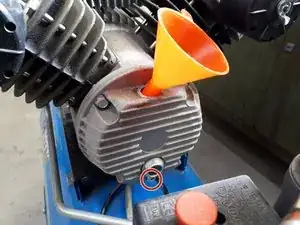

    • Add the new oil through the filler hole.

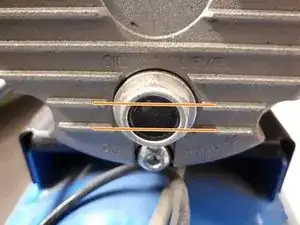

    • Make sure the oil level on the indicator is between the lines.
